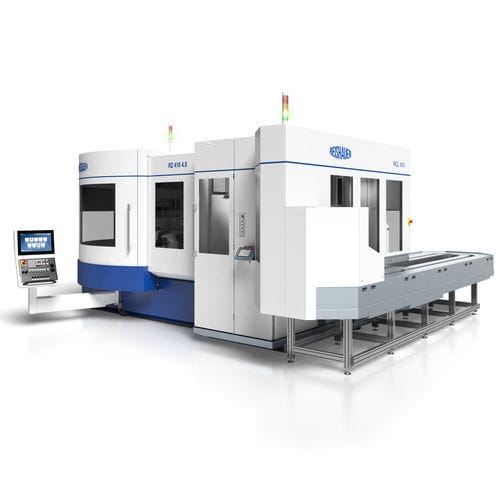

Loading system with scanning system RCL 410

workpiecerobotizedsemi-automatic

Overview
The Reishauer RCL 410 loader system interfaces with Reishauer universal grinding machines of type RZ 410 and can also be used with RZ 550 and RZ 1000. It is designed for fast loading and short changeover times, suited to recurring small and medium lot sizes.

Key features

• Compatibility with Reishauer RZ 410 (also suitable for RZ 550 and RZ 1000)
• Single and double gripper options (double gripper on request; availability from around Q2 2026)
• Semi-automatic, intuitive workpiece teaching for easy setup
• Short setup thanks to storable workpiece programs
• Tool-free changeover
• Compact footprint: approx. 12.5 m² with standard belt storage
• Integrated belt storage with extension options
• Low maintenance design
• Swiss Made

Standard equipment

• C-axis: planetary gear, synchronous motor, swivel arm with gripper
• Y-axis: linear guide, timing belt, planetary gear, synchronous motor
• Z-axis: linear guide, ball screw spindle, synchronous motor
• Central lubrication with oil tank
• Integrated belt storage
• Peripheral system: electrical cabinet, housing, oil pan, leveling elements
• Interfaces: ProfiNet and Multipol
• Remote maintenance capability

Working range

• Max. workpiece diameter: 410 mm
• Max. shaft length: 600 mm
• Gripper: single / double *
• Max. workpiece weight: 1 x 50 kg / 2 x 25 kg
• Total belt storage load max.: 1000 kg
• Machine weight: 3100 kg
• Footprint: approx. 12.5 m² with standard belt storage

CNC control / Software

• PLC: Siemens S7-1500
• HMI: Siemens SIMATIC HMI KTP 700 F

Options

• Oil centrifuge
• Workpiece detection using contour masks
• Workpiece stacking
• Integration of external belt storage
• Integration of third-party systems (robotic)
• Camera system

Notes
All technical specifications are subject to change.

Technical specifications

• Model: RCL 410
• Compatibility: Reishauer RZ 410 (also suitable for RZ 550 and RZ 1000)
• Max. workpiece diameter: 410 mm
• Max. shaft length: 600 mm
• Gripper: single / double (double gripper on request)
• Max. workpiece weight: 1 x 50 kg / 2 x 25 kg
• Total belt storage load max.: 1000 kg
• Machine weight: 3100 kg
• Footprint: approx. 12.5 m² with standard belt storage
• Axes: C-axis (planetary gear, synchronous motor), Y-axis (linear guide, timing belt, planetary gear, synchronous motor), Z-axis (linear guide, ball screw spindle, synchronous motor)
• Central lubrication with oil tank
• Interfaces: ProfiNet and Multipol
• Remote maintenance capability
• PLC: Siemens S7-1500; HMI: Siemens SIMATIC HMI KTP 700 F
• Options available: oil centrifuge, contour-mask workpiece detection, stacking, external belt storage integration, third-party system integration (robotic), camera system
• Swiss Made; storable workpiece programs; semi-automatic workpiece teaching; tool-free changeover; low maintenance
