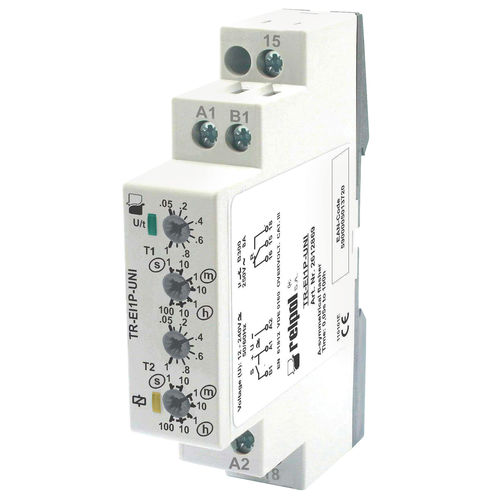

Multi-function time relay TR-EI1P-UNIDIN rail mounteddirect mountingasymmetrical
Add to favorites
Compare this product
Characteristics
- Function
- multi-function
- Mounting
- DIN rail mounted, direct mounting
- Other characteristics
- asymmetrical
- Voltage
250 V
Description
Multifunction, asymmetric flasher with controled times T1 and T2. Contacts: 1CO; rated load AC1 - 8 A/250 V AC; coils AC/DC; 35 mm rail mount.
Technical info
Output circiut
Number and type of contacts : 1 C/O
Max. breaking capacity
AC1 2 000 VA
Input control circuit
Rated voltage :
12 … 240 V AC/ DC
Insulation
Rated surge voltage :
4 000 V AC
General data
Ambient temperature operating :
-25...+55 oC
Time module data
Functions
Ii - terminals bridged A1-B1 Ip - terminals not bridged
Time intervals
1s … 100 h
