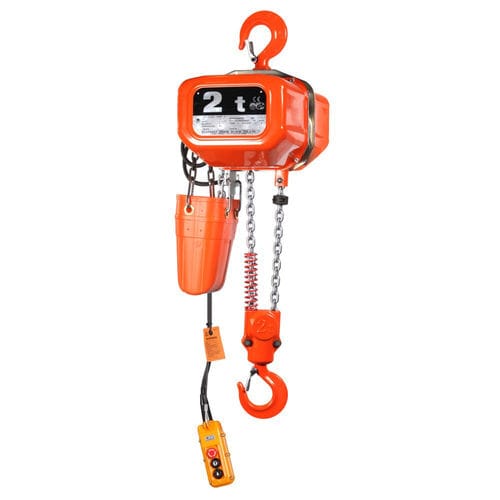

Electric chain hoist FBH series

2-speed

The 400 V electric chain hoists are extremely solid and have a robust sheet steel housing. Very popular as it is ready to use with limit switches, 24 V control voltage, controlunit and plug connections. The high duty cycle and high lifting speed ensure trouble-free operation and a long service life. Properties Slip clutch against overload. Brake that holds the load at any desired height. Limit switches for highest and lowest hook positions. Operation 24 Volt control voltage. Power and control cables are equipped with plug connection. Phase protection against incorrect rotation of the motor. Galvanized load chain, Class DAT (Grade 8). In case of overload, the hooks will gradually bend and do not suddenly break off. 2 speed. Standard delivery 3 m lifting height (maximum distance between top and bottom hook). 1.8 m control cable. Limit switches highest and lowest hook position. Push-button 24 V control unit. 4 m power cable. Plastic chain bucket for 3 m lifting height. Trolley not included. Option Increased lifting and/or control height. Larger chain bucket > 3 m lifting height. Radio remote control. Push / electric trolley. Marking: According to standard, CE-marked Standard: EN 12100, EN 14492, EN 818-7
