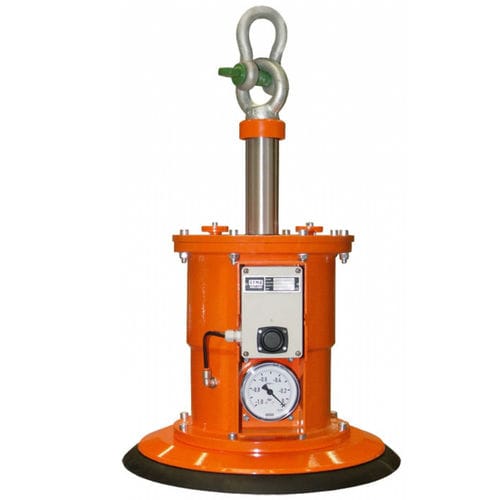

Sheet metal vacuum lifting device VHM series
high-speed

sheet metal vacuum lifting device
sheet metal vacuum lifting device
Add to favorites
Compare this product


Characteristics

Product applications
for sheet metal
Options
high-speed
Number of cups

1 unit

Carrying capacity

Max.: 1,200 kg (2,646 lb)

Min.: 100 kg (220 lb)

Description

REMA VHM mechanical vacuum lifters are ideal for use in places where there is no energy source. Properties •No energy source required. •Easy and quick installation. •Ergonomic control by one operator. •Low maintenance. •TÜV certified. Safety •Vacuum protection against release. •Acoustic signal in case of pressure loss with 2 x 9 V batteries (not rechargeable). •Pressure gauge and vacuum control. •Green and red LED for "safe operation". •Minimum load 3 kg. Option •Safety bar to esure there is always enough distance between man and machine. IMPORTANT! •Always check on the material specifications and dimensions (L x W x D) of the sheet or workpiece to be lifted. •Marking: According to standard, CE-marked •Standard: EN 12100, EN 13155
