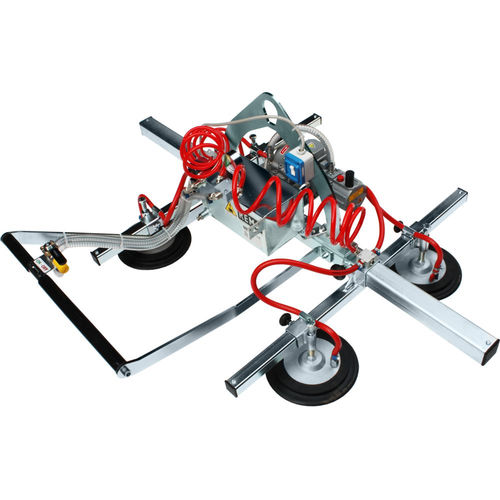

Sheet metal vacuum lifting device GLA, VLA series
electricpneumatichorizontal

sheet metal vacuum lifting device
sheet metal vacuum lifting device
sheet metal vacuum lifting device
Add to favorites
Compare this product


Characteristics

Product applications
for sheet metal
Power
electric, pneumatic
Options
horizontal
Number of cups

4 unit

Carrying capacity

Min.: 250 kg (551 lb)

Max.: 2,000 kg (4,409 lb)

Description

For horizontal transport of non-porous, stable and flat sheets of metal, plastic and other materials. Properties •GLA types are driven by an electric vacuum pump. •VLA types are driven by an pneumatic vacuum pump. Safety: •Vacuum protection against release. •Acoustic signal at negative pressure. •Safety bar for sufficient distance. •Pressure gauge, vacuum control. •Acoustic signal included. •Rechargeable batteries and charger. •Minimum air pressure for type VLA must be 6-7 Bar. Benefits: •Ergonomic action by 1 person. •Low maintenance. Option •Battery, including charger. •Manual mechanical rotation and tilting. •Vacuum lifters for wood and stone on request. •Higher capacities on request. MPORTANT! •Always check the material specifications and dimensions (L x W x D) of the sheet or workpiece to be lifted. •Larger tonnages and / or other specifications on request. •Marking: According to standard, CE-marked •Standard: EN 12100, EN 13155
