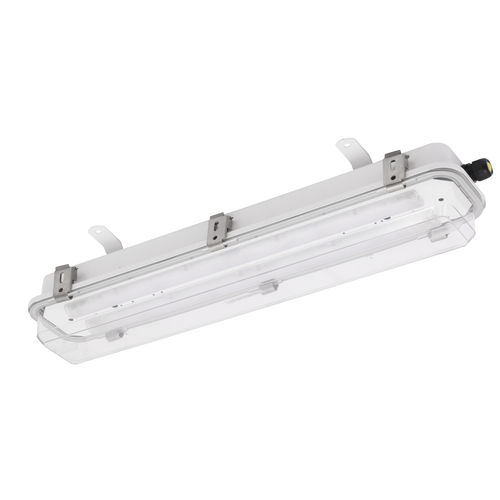

Light fixture EXP 03 MLED
LEDUVoutdoor

light fixture
light fixture
light fixture
light fixture
light fixture
light fixture
light fixture
Add to favorites
Compare this product


Characteristics

Type
light fixture
Illumination technology
LED, UV
Applications
outdoor
Protection level
IP66, IP67
Other characteristics
for industrial applications, explosion-proof, stainless steel, for hazardous locations

Description

APPLICATION The luminaire is designed to light the industrial areas and facilities, also outdoor spaces with an explosion hazard of gases, vapours and flammable fogs mixed with air and inflammable dust and fibers mixed with air. Hazardous zones: 2,22. Luminaire for outdoor use limited to space partially protected against the weather – ie .: sheds, roofing, etc. For areas fully exposed to the weather conditions see dedicated version EXP 03 MLED…/KAWN (separate catalogue card) TECHNICAL DATA Type of housing: gas: Ex nA I dust: Ex tc Explosion group: gas: IIC, IIB, IIA I dust: IIIC, IIIB, IIIA Temperature class: T4, T3, T2, T1 Max surface temperature: 65 C Protection level: gas: Gc I dust: Dc Protection degree: IP 66/67 Ambient temperature: from -20C to +40C*** ***Ambient temperature with battery from 0C to +40C MOUNTING Two brackets with 2 mounting holes each (type „W”). Recommended brackets ordered separately (only zinc coated steel housing). Stainless steel housing has welded brackets type „W” CONSTRUCTION DETAILS Housing: zinc coated steel housing powder painted white Diffuser: UV stabilized strengthened polycarbonate Diffuser clips: stainless steel Mounting plate: zinc coated steel sheet powder painted Supply voltage: 220V-240V AC 50-60 Hz / DC OPTIONS 3 hour emergency unit with self test. 3-phase through wiring Colour temperature -3000K Stainless steel housing ADDITIONAL EQUIPMENT Eyelet sling stainless steel pole bracket (Ø 48-53 mm) Angular bracket Slanting bracket
