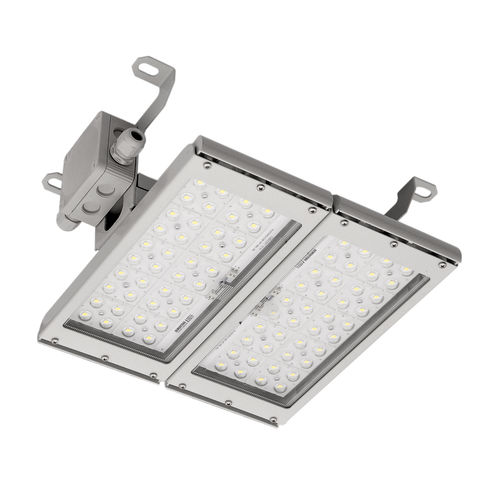

Light fixture EXP 19 MLED

LEDoutdoorindustrial

APPLICATION The luminaire is designed to light the industrial areas and facilities, also outdoor spaces with an explosion hazard of gases, vapours and flammable fogs mixed with air and inflammable dust and fibers mixed with air. Hazardous zones: 2,22. Luminaire equipped with lens mounted on LED panel for light pattern shapping and reducing glare. Luminaire is available in 2 or 4-modules version TECHNICAL DATA Type of housing: gas: Ex nR I dust: Ex tc Explosion group: gas: IIC, IIB, IIA I dust: IIIC, IIIB, IIIA Temperature class: T4, T3, T2, T1 Max surface temperature: 100°C Protection level: gas: Gc I dust: Dc Protection degree: IP 66 Ambient temperature: from -30°C to +45°C Power supply: 220-240V AC/DC MOUNTING Luminaire for direct installation on ceiling, wall with adjustable bracket. CONSTRUCTION DETAILS Housing: aluminium, powder painted Diffuser: strengthened glass Bracket: steel, powder painted Luminaire equipped with vent plug. OPTIONS Optics: narrow beam Colour temperature 3000K DALI system Suspended version CRI 80 Other optics available on request
