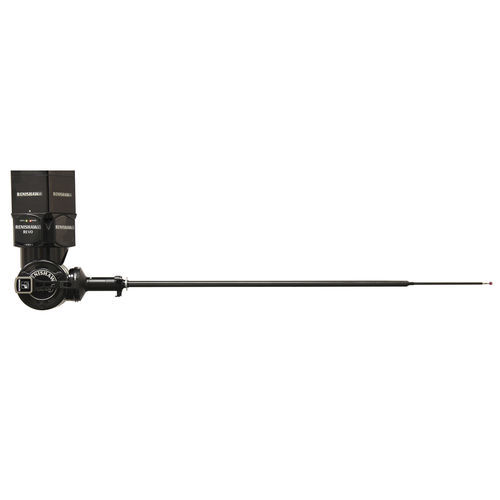

Measurement touch probe RSP3-6

scanningCMM

Enhanced access and inspection capability with RSP3-6 The RSP3-6 provides enhanced capability for accessing deep bores and inspecting features within large parts. It is available with a range of stylus holders for applications requiring straight and cranked extensions and can be used for both touch-trigger and 2D scanning applications. The other RSP3 probes within the range (RSP3-1, -2, -3, -4) can be used for 3-axis scanning with fixed REVO head angles during measurement, providing the REVO system with 3D-scanning (X, Y, Z) with crank stylus capabilities. It also allows different styli lengths to be used whilst maintaining optimum metrology performance. Key benefits •Reach: Available with straight extensions up to 800 mm from REVO’s A-axis centre of rotation and cranked extensions up to 600 mm from REVO’s A-axis centre of rotation. •Accuracy: Scanning accuracy: Typically better than 10 µm form error (filtered) and 5 µm diameter error. •Touch-trigger accuracy: Typically better than 3 µm form and diameter error. •Part of the REVO 5-axis multi-sensor system: Long extensions combined with 5-axis movements for better part access and multi-sensor changing for increased flexibility.
