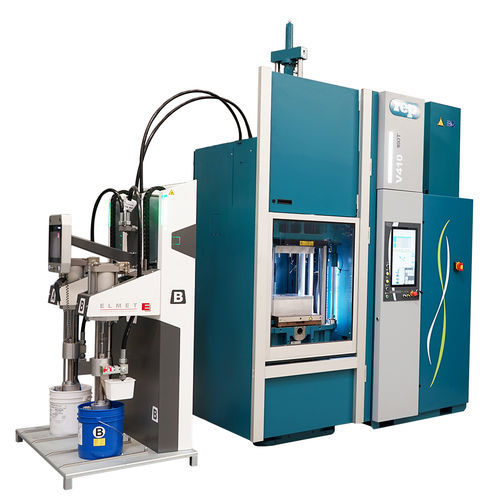

Vertical injection molding machine V410 LSR

hydraulicLSR

With our customers' requirements in mind, we strive for new developments by offering turnkey solutions in line with the current concerns: driving industrial productions towards sustainable development! The demonstration made with this application for fuel cell gaskets offers a standardized, easily configurable design for various applications. Based on this concept, REP wants to contribute, beyond automation, to sustainable development: transition to e-mobility and hydrogen, wasteless molding, energy-efficient solutions, flexible reusable means for increased lifespan. A fully automatic process ! Benefits: A technically sophisticated configuration • - Adaptation to the technically most sophisticated and demanding processes • - Flashless, waste-free molding o - Perfect and uniform clamping quality over the whole surface o - Maintenance-free durability over time • - Outstanding injection precision and exactitude granted • - Stability and repeatability designed for automation • - Low consumption (servo-motor - insulation) - 100% robot-controlled and automated Production • - "Plug & Automate" Concept o - Easy to install o - Highly flexible • - Insert loading • - Plasma activation of the molded surface • - Part demoulding and receiving • - Visual compliance testing V410 Extended – 50 cm3 LSR • - Automated cell made by REP • - LSR dosing system • - Flashless single-cavity mold • - CRB with 4 shut-off nozzles LSR Fuel Cell Gasket • - Insert dimension: 290 x 160 mm (thickness 0.1 mm) • - Specific stainless steel • - Gasket overmolding • - Low gasket thickness • - LSR volume of the gasket: 3.1 cm3
