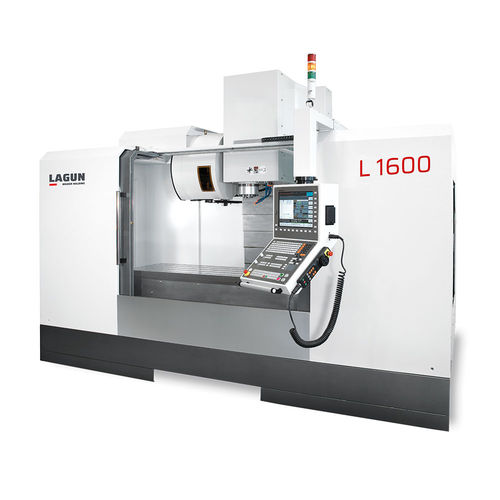

Vertical CNC machining center L 1600
3-axiscolumn typeBT 40

Add to favorites

Compare this product

Go to the REPUBLIC LAGUN website for more information

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Structure: column type
Spindle mount: BT 40, BT 50, SK40, SK50, ISO 50
Number of tool stations: 40 tools
X travel: 1,620 mm
(64 in)
Y travel: 700 mm
(28 in)
Z travel: 640 mm
(25 in)
Rotational speed: 8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)
Power: 28 kW, 34 kW, 36 kW
(38.07 hp, 46.23 hp, 48.95 hp)
Table load capacity: 1,300 kg
(2,866 lb)
Tool weight (max): 8 kg
(17.6 lb)
Repeatability: 0.003 mm
(0 in)
Tool-changing time: 2.5 s
Weight: 11,000 kg
(24,250.85 lb)
Overall height: 2,900 mm
(114.2 in)

Description

TABLE Table surface 1.700 x 620 mm T slots 5 x 18 x 125 mm Table to floor height 980 mm HEAD Main spindle power (S1/S6) 15 / 22 kW Transmission Polea-correa / Polea-katea / Belt-pulley / Poulie-courroie / Riemenscheibe Distance from spindle to table (min./max.) 65 ÷ 705 mm Distance from spindle to column 750 mm TRANSLATION System Guía lineal rodillos / Arrabol motako gida lineala / Roller type linear guideway / Glissière linéaire à rouleaux / Linear-Rollenführung Nº of guideways (X-Y-Z) 2 - 3 - 2 Runner blocks (X-Y-Z) 6 - 6 - 6 Ø ballscrews 40 x 10 mm AUTOMATIC TOOL CHANGER Selection system Random / Ausazkoa / Arm type / À bras / Doppelgreifer Nº of tools (BT 40) 30 Max. diameter with adjacent tools (BT 40) 76 mm Max. diameter with alternate tools (BT 40) 150 mm Max. tool lenght (BT 40) 300 mm ACCURACY Positioning ± 0,005 mm GENERAL INFORMATION Floor spare required 3.800 x 3.040 mm
