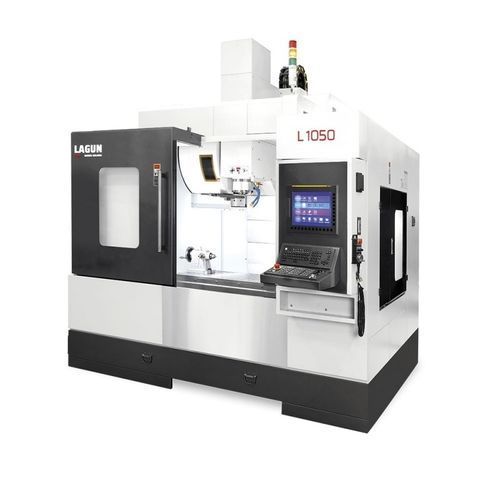

3-axis CNC machining center L 1050
verticalBT 40SK40

Add to favorites

Compare this product

Go to the REPUBLIC LAGUN website for more information

Characteristics

Number of axes: 3-axis
Spindle orientation: vertical
Spindle mount: BT 40, SK40
X travel: 1,050 mm
(41 in)
Y travel: 600 mm
(24 in)
Z travel: 640 mm
(25 in)
Rotational speed: 8,000 rpm, 10,000 rpm, 12,000 rpm, 15,000 rpm
(50,265 rad.min-1, 62,832 rad.min-1, 75,398 rad.min-1, 94,248 rad.min-1)
Power: 24 kW, 25 kW, 26 kW
(32.63 hp, 33.99 hp, 35.35 hp)
Work feed X-axis: 36,000 mm/min
(24 in/s)
Work feed Y-axis: 36,000 mm/min
(24 in/s)
Table load capacity: 700 kg
(1,543 lb)
Tool weight (max): 8 kg
(17.6 lb)
Repeatability: 0.003 mm
(0 in)
Tool-changing time: 2.5 s
Weight: 6,200 kg
(13,668.66 lb)
Overall height: 3,100 mm
(122 in)

Description

TABLE Table surface 1.150 x 550 mm T slots 5 x 18 x 100 mm Table to floor height 925 mm HEAD Main spindle power (S1/S6) 11 / 15,5 kW Transmission Polea-correa / Polea-katea / Belt-pulley / Poulie-courroie / Riemenscheibe Distance from spindle to table (min./max.) 120 ÷ 760 mm Distance from spindle to column 680 mm TRANSLATION System Guía lineal rodillos / Rodillo motako gida lineala /Roller type linear guideway / Glissière linéaire à rouleaux / Linear-Rollenführung Nº of guideways (X-Y-Z) 2 - 3 - 2 Runner blocks (X-Y-Z) 6 - 5 - 6 Ø ballscrews 40 x 16 mm Rapid feedrates (X-Y-Z) 36-36-42 m/min AUTOMATIC TOOL CHANGER Selection system Random / Ausazkoa / Arm type / À bras / Doppelgreifer Nº of tools (BT 40) 30 Max. diameter with adjacent tools (BT 40) 76 mm Max. diameter with alternate tools (BT 40) 150 mm Max. tool lenght (BT 40) 300 mm ACCURACY Positioning ± 0,005 mm GENERAL INFORMATION Floor spare required 3.200 x 2.457 mm
