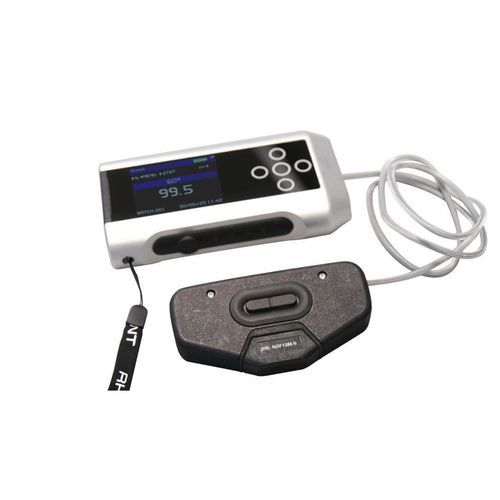

Single-angle glossmeter Novo-Gloss Flex 60-X

digitalsmall-orificeportable

Overview
Compact glossmeter designed for accurate 60° gloss measurement on small footprint areas, curved surfaces and hard-to-reach places. The Novo-Gloss Flex 60-X combines a 6×12 mm measurement area with on-board statistics, graphical trend display and wireless connectivity to simplify inspection workflows in industrial coating and plastics applications.

Key features

• 60° gloss measurement optimized for small areas (measurement area 6×12 mm)
• Adapted for curved and hard-to-reach surfaces
• On-board statistics: max, min, mean, standard deviation and graphical trend display
• Bluetooth and USB data transfer for traceable data export
• Rechargeable lithium-ion battery — approx. 14,000 readings per charge
• 8 MB internal memory (approx. 2,950 readings)
• Full-colour rotatable screen and touch-sensitive button interface for single-handed operation

Applications

• Automotive interior trim and components
• Consumer electronics: curved plastic parts
• Plastics industry: curved and injection-moulded parts
• Furniture and industrial coatings
• Polished stone and other small-area finishes

Standards
Complies with ISO 2813 and is compatible with other glossmeters following the same standards (ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, JIS K 5600-4-7).

Included / Accessories (summary)

• High gloss standard (included)
• Standard measuring adaptor (fixed on Flex 60-X)
• Calibration certificate for instrument and standards
• USB data cable
• Optional/custom adaptors available for repeatable measurement on complex curves (customer-specific adaptors require part drawing)

Notes

• The Flex 60-X is the 60° universal-angle model for small/curved areas. Improved low-gloss resolution (GUh) and certain low-gloss accessories are available on the Flex 60 model but GUh functionality is not included on the Flex 60-X.

Technical specifications

• Measurement angle: 60° (universal angle)
• Measurement area: 6 mm × 12 mm
• Measurement range: 0 – 125 GU
• Resolution: 0.1 GU
• Improved low-gloss resolution (GUh): not available on Flex 60-X model (feature on Flex 60)
• Repeatability: ±0.2 GU
• Reproducibility: ±0.5 GU
• Standards: ISO 2813, ASTM D523, ASTM D2457, DIN 67530, JIS Z 8741, JIS K 5600-4-7
• Power: Rechargeable lithium-ion battery — approx. 14,000 readings per charge
• Memory: 8 MB (~2,950 readings)
• On-board stats: max, min, mean, standard deviation and graphical trend analysis
• Connectivity: Bluetooth and USB data transfer
• Operating temperature: 15 – 40 °C
• Operating humidity: Up to 85% (non-condensing)
• Instrument dimensions & weight: 80 mm (H) × 150 mm (W) × 35 mm (D), 392 g
• Measurement head dimensions & weight: 60 mm (H) × 110 mm (W) × 28 mm (D), 109 g
• Packed weight / dimensions: 1.6 kg; packed size approx. 110 mm (H) × 280 mm (W) × 220 mm (D)
• Commodity code: 9027 5000
