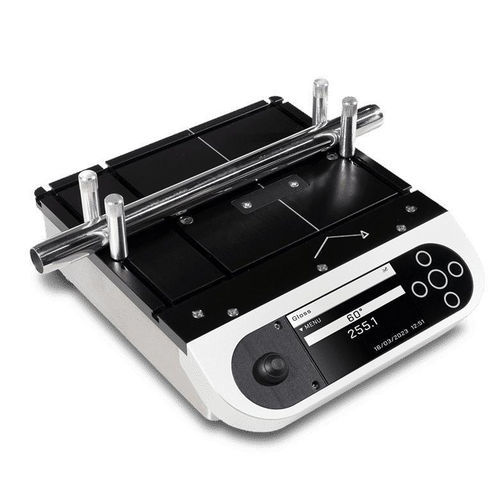

Single-angle glossmeter Novo-Curve 4

small-orificewith data outputwide range

Short description

• Benchtop glossmeter measuring at 60°
• Suitable for curved, cylindrical and flat small surfaces
• Small measurement spot (2 mm × 2 mm) for precise readings
• Custom adaptor jigs and cylinder fixtures available
• Supplied with ISO 17025 (UKAS) calibrated standard

Overview
Manufactured since 1997, the Novo-Curve 4 is engineered to measure gloss on curved, cylindrical and small parts that are not suitable for standard handheld units. Specially designed 60° optics and a reduced measurement spot enable accurate readings on irregular shapes and restricted areas. Modular jigging options improve repeatability for complex geometries.

Benefits

• Accurate measurement of small, curved or irregular surfaces
• Repeatable positioning using simple jigging posts or custom adaptors
• Hands-free operation with optional footswitch
• On-board statistical analysis and graphical trend reporting
• Direct data transfer to PC for QC workflows

Measurement advice
Use continuous (constant read) mode to locate peak gloss on curved samples. Employ the indented platen, moveable jigging posts or bespoke adaptors to ensure repeatable placement of small or complex parts. Calibrate with a standard close to the sample finish (matt to mirror) for best accuracy.

Other measurement options (comparison)
For very low or very high gloss ranges or when DOI/haze parameters are required, refer to alternative instruments in the range that offer higher resolution or additional metrics.

Features

• 60° measurement optics
• 2 mm × 2 mm measurement spot
• Full-colour display with adjustable brightness
• 5-button touch-sensitive interface; measurement via button or optional footswitch
• Integrated calibration holder with automatic tile detection
• Fast batched measurement and user-definable batch names
• On-board trend and statistical analysis (max, min, mean, standard deviation)
• Memory: 8 MB (approx. 2,000 readings)
• Data transfer: USB (instrument recognised as drive; CSV export)
• Compatible software: Novo-Gloss Multi Gauge for extended analysis and export (PDF/Excel/CSV)

Included accessories

• ISO 17025 certified calibration standard with protective case
• Power supply unit
• USB data cable
• Tile cleaning cloth

Optional accessories

• 4 × jigging posts
• Replacement calibration tile
• Supplementary calibration/check standards (matt to mirror)
• Novo-Curve cylinder measurement jig
• Custom fixture jigs / 3D-printed adaptors
• Footswitch for hands-free measurement

60° Gloss (summary)

• Range (GU): 0–10 | 10–100 | 100–1000
• Repeatability: 0.1 GU | 0.2 GU | 0.2 %
• Reproducibility: 0.2 GU | 0.5 GU | 0.5 %
• Resolution: 0.1 GU (all ranges)
• Measurement spot: 2 mm × 2 mm
• Standards: ISO 2813 / ASTM D523

Instrument information (summary)

• Power: 110–120 V AC or 220–240 V AC (external 9 V DC power pack)
• Measurement aperture: 4.5 mm ø
• Operation: Full-colour screen, adjustable brightness, touch-sensitive controls
• Construction: Integrated calibration holder
• Data transfer: USB direct transfer (CSV) and keyboard-emulation for Excel import
• Operating temperature: 15–40 °C
• Operating humidity: Up to 85% non-condensing

Dimensions & Weights (summary)

• Weight: 2.2 kg
• Packed weight: 3.4 kg
• Dimensions (unit): 70 mm × 190 mm × 230 mm (H × W × D)
• Packed dimensions: 110 mm × 280 mm × 220 mm (H × W × D)

Order codes & identifiers

• Product order code (internal): A1277-600
• Accessory examples: 4× jigging posts B1277-602; Mirror gloss standard B6000-101

Notes
Calibration standards from matt to mirror are available to match sample finishes. A mirror gloss calibration standard is recommended for best reproducibility at very high gloss ranges.

Technical specifications

• Measurement angle: 60° (gloss units, GU)
• Measurement spot: 2 mm × 2 mm
• Measurement range: 0–1000 GU (segmented ranges)
• Repeatability & reproducibility: see 60° summary
• Memory: 8 MB (~2,000 readings)
• Data transfer: USB (CSV export)
• Display & UI: Full-colour screen, 5-button touch interface
• Power: External 9 V DC adapter (110–120 V or 220–240 V input)
• Operating conditions: 15–40 °C; humidity up to 85% non-condensing
• Weight & dimensions: see summary above
• Commodity code: 9027 5000
