Belt weigher Master™ 221DB
Add to favorites
Compare this product
Description
Product overview
Options
Applications
Description

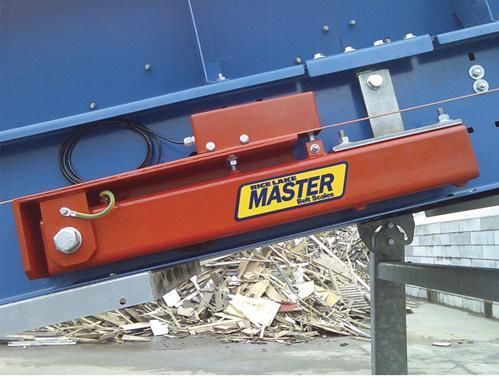

The Master 221DB belt scale weigh frame consists of two arms with pivots and a load cell mounted to the conveyor side supports. The weighing idler is mounted on the frame arms. The 221DB provides simple assembly and clear service access and is suitable for most belt widths and capacities.
Technical specifications
- Weigh frame mounts on the outside of the conveyor
- Minimal conveyor modifications required
- Service-friendly design for easy access
- Friction-free pivot supports
- Two support beams
- Fits standard conveyor widths
- Mounts with four bolts
Options
- Galvanized or stainless steel construction
Applications
- Medium to heavy capacity belt weighing
Description
The Master 221DB belt scale weigh frame consists of two arms with pivots and a load cell mounted to the conveyor side supports. The weighing idler is mounted on the frame arms. The 221DB provides simple assembly and clear service access and is suitable for most belt widths and capacities.
Technical specifications
- Conveyor width: 18 to 72 in (457 to 1,829 mm)
- Capacity: up to 3,300 tons per hour
- Maximum belt speed: 600 ft/min (3 m/s)
- Maximum inclination: 25 degrees
- Material: powder-coated mild steel
- System accuracy: 0.5% to 1%
- Load cell: RL9018SS 50 kg, 100 kg, 200 kg
- Junction box: JB4SS
- Warranty: one-year limited
