Rotational speed sensor SPU5020
mechanicalflexibleplug-in

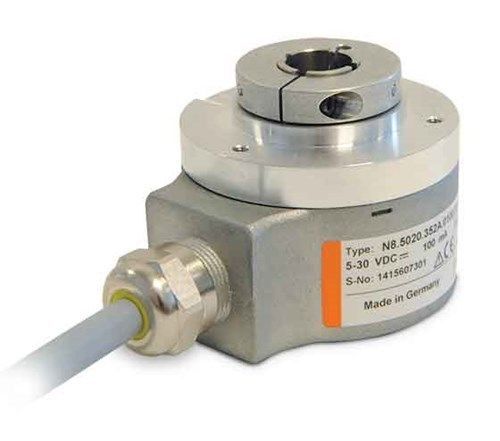

Rotational speed sensor - SPU5020 - Rice Lake Weighing Systems - mechanical / flexible / plug-in
Rotational speed sensor - SPU5020 - Rice Lake Weighing Systems - mechanical / flexible / plug-in
Add to favorites
Compare this product

Characteristics

Type of movement
rotational
Technology
mechanical
Other characteristics
digital output, robust, waterproof, plug-in, flexible
Temperature range

Min.: -40 °C
(-40 °F)

Max.: 85 °C
(185 °F)

Description

Product overview
  • Industrial speed pickup for rotational speed monitoring and position detection in machinery and automation systems
  • Flexible mounting options for a wide range of installation situations
  • Standard encoder design suitable for global use with robust bearing (Safety-lock™) and die-cast housing
  • Ingress protection IP66 for operation in harsh environments


Technical specifications
Mechanical characteristics:
  • Ingress protection: IP66
  • Rotor moment of inertia (shaft): approx. 1.8 x 10-6 kgm2
  • Rotor moment of inertia (hollow shaft): approx. 6 x 10-6 kgm2
  • Radial load capacity (shaft): 80 N
  • Axial load capacity (shaft): 40 N
  • CE standards: EN61000-6-4, EN61000-6-4, EN61000-6-3
  • Operating temperature range: -40 °C to 85 °C
  • Connection types: M23 or M12 connector


Electrical characteristics
  • Output circuit: TTL compatible (push-pull)
  • Supply voltage: push-pull 10–50 VDC or 5–30 VDC as specified
  • Power consumption: push-pull 50 mA to 100 mA
  • Permissible load per channel: ±20 mA up to 300 kHz
  • Signal level high: push-pull min UB-1V (7272-UB-2.0V)
  • Rise time / fall time: push-pull max 1 µs


Dimensions & warranty
  • Outer diameter: 50.8 mm; installation depth max 47 mm
  • Shaft: N/A
  • Connection options: M23 or M12
  • Warranty: One-year limited warranty

Catalogs

No catalogs are available for this product.

See all of Rice Lake Weighing Systems‘s catalogs

Other Rice Lake Weighing Systems products

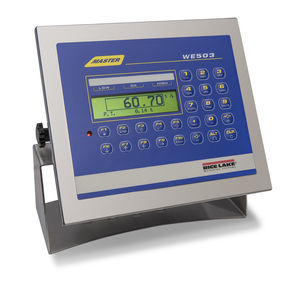

Belt Scale Systems
