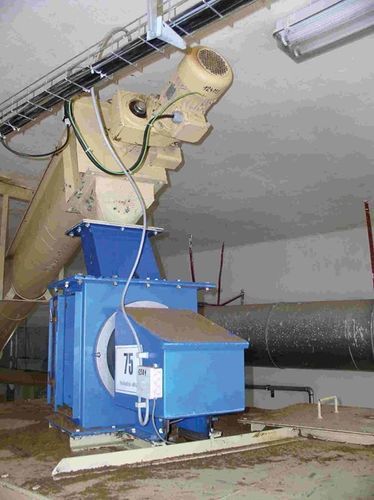

Mass flow meter IFM30

for solidsflangestainless steel

Overview

• No moving parts; sensing element mounted in sensor housing
• Easy-access service door for inspection and maintenance
• One basic sensor design covers all measuring ranges
• Construction: mild steel (options: SS304, SS316, food grade)
• Optional ATEX approval for II2D and II3D (Zone 21 and 22)
• Complete system: IFM30 sensor, IFP30 sensing plate, IFH30 housing, WE302D integrator

Applications

• Continuous mass flow measurement in bulk solids conveying systems (e.g., chutes, hoppers, pneumatic conveyors)

Description
The IFM30 Impact Flow Meter measures the impact force of bulk material on a sensing plate and converts this force into a signal proportional to mass flow. The design avoids rotating parts, simplifying maintenance and increasing reliability in solids handling installations. When specified with ATEX-certified components, the system is suitable for use in hazardous zones (II2D / II3D, Zone 21/22).

System components

• IFM30 impact sensor
• IFP30 sensing plate (300×300 mm)
• IFH30 housing
• Flow meter integrator (model WE302D)

Impact Flow Meter System Specifications
Material: Mild steel (options: SS304, SS316, food grade)
Flange and membrane: Rubber
Load cell: Aluminum standard; optional stainless steel or ATEX versions available
Power supply: 5–15 VDC (stabilized by electronics)
Signal output: 2 mV/V at 100% load
Junction box: ABS plastic (model JBS)
Dimensions (plate & housing): 300 × 300 mm
Warranty: One-year limited warranty

Available parts / examples

• Impact sensor IFM30-MD3, capacity 60 m3/hr
• Impact plate IFP30-MD
• Impact plate housing IFH30-MD

Technical specifications

• Material options: Mild steel, SS304, SS316, food-grade
• No moving parts; sensing element mounted in housing; easy-access door
• Single sensor design adaptable to multiple measuring ranges
• ATEX option for Zone 21/22 (II2D/II3D)
• Power requirement: 5–15 VDC (stabilized)
• Signal: 2 mV/V at full scale
• Load cell: Standard aluminum; stainless steel and ATEX versions optional
• Junction box: ABS (model JBS)
• Plate/housing size: 300 × 300 mm
• Warranty: 1-year limited
