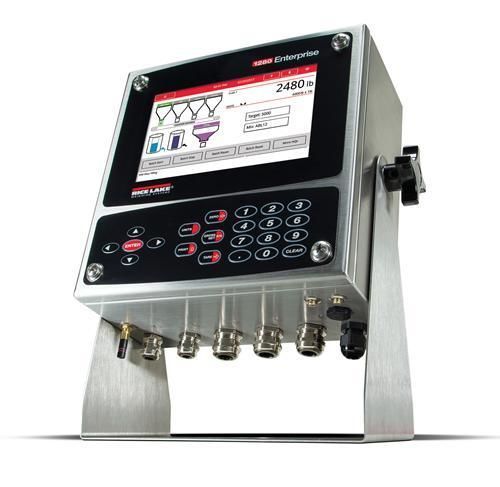

Digital weight indicator 1280 Enterprise™

with touchscreenwall-mountpanel-mount

Overview

• Customizable color touchscreen with graphical user interface
• User-defined softkeys, icons and graphics
• Tactile keypad for scale operations, numeric entry and navigation
• On-screen keyboard available during entry mode (or external keyboard)
• Built-in web server for remote access, systems integration and data monitoring
• Multi-language operation and text entry
• Supports eight scales within five different kinds: Analog load cell (multi-range/interval), Total scale summing, Serial input scales, iQUBE²® scales, Program scales
• Six smart card slots for additional scale channels, serial ports, digital inputs and outputs, analog outputs and protocol interfaces
• iRite™ Programming Software with five built-in applications: Truck In/Out, recipe storage, filling/dosing, counting, checkweighing; customizable user programs and 150 built-in functions
• Communications: Email, USB, Ethernet TCP/IP, Wi‑Fi Direct®, two serial ports (RS-232 or RS-485)
• Alibi memory captures serial port transmissions; four configurable data-stream formats for PC, printers and remote displays
• 100 setpoints, 18 configurable setpoint types; eight digital I/O for control and pulse count
• Three enclosure types available: universal with tilt stand, panel mount and wall mount

Approvals & Certifications (selected)
NTEP, Measurement Canada, OIML, CE Mark, cULus listings and other regional/industry approvals (product-specific approval documents available).

Images & Views
Multiple product views and HD views available showing universal, panel and wall-mount configurations as well as keypad and touch-only variants.

Dimensions (high level)
Universal, Panel-mount, Wall-mount and Touch-only variants offered; detailed dimensional tables available for each enclosure type and for OPTO accessory modules.

Resources
Product resources include manuals (operation, technical, installation), firmware, software applications (counting, filling/dosing, truck in/out, axle weighing, checkweighing, recipe program), catalogs, drawings (CAD/3D), fieldbus configuration files and videos/webinars demonstrating setup, calibration and applications.

Technical specifications

• Power: AC voltages 100 to 240 VAC 50/60 Hz; DC voltages 11 to 30 VDC
• Power Consumption: 60 W
• Excitation Voltage: 10 VDC (±5 VDC); supports 16 × 350 Ω or 32 × 700 Ω load cells per A/D card
• Analog Signal Input Range: -60 mV to 60 mV
• Analog Signal Sensitivity: 0.3 μV/graduation minimum at 7.5 Hz to 120 Hz; 1.0 μV/graduation recommended
• A/D Sample Rate: 7.5 to 960 Hz, software selectable
• Resolution: Internal 8,000,000 counts; Display 1,000,000
• System Linearity: ±0.01% full scale
• Digital I/O: Eight I/O channels on CPU board; optional 24-channel I/O expansion boards
• Communication Ports: Port 1 & 2: full duplex RS-232 with CTS/RTS, RS-422/485 (baud 1200–115200); Port 3: USB 2.0 Device (Micro); USB host: (2) Type A connectors (max 500 mA); Ethernet: Wired 10/100 Auto-MDX; Wireless: 802.11 b/g/n 2.4 GHz
• Onboard: Selectable filters (three-stage, adaptive or damping); Embedded Linux OS; 8 GB eMMC (system); 1 GB DDR3 RAM; 460 MB onboard database (SQLite); Up to 32 GB micro SD card (sold separately)
• Display Options: 7-inch (800 × 480 px) at 500 or 1,000 NIT; 12-inch (1280 × 800 px) at 1,500 NIT
• Keys/Buttons: 22-key membrane panel, tactile buttons; on-screen keyboard for text and numeric entry; USB for flash drive, keyboard and printer
• Operating Temperature: Certified 14 °F to 104 °F (-10 °C to 40 °C); Operating -4 °F to 131 °F (-20 °C to 55 °C)
• Rating/Material: Universal IP69K; Wall Mount IP66; Panel Mount IP69K, NEMA Type 4X and 12; Stainless steel 304 enclosure
• Weight examples: Universal enclosure ~11 lb (4.9 kg); Panel mount ~8 lb (3.6 kg); Wall mount ~23 lb (10.4 kg); Panel mount touch-only variants ~7–10 lb
• Warranty: Two-year limited
• EMC Immunity: 10 V/m
• Built-in applications and extensibility: five built-in apps, iRite programming language for custom programs, smart card expansion slots for I/O and protocol interfaces
