Batch weight indicator-controller 920i® FlexWeigh

digitalstainless steelrelay

Overview
Pre‑engineered, factory‑tested 920i® FlexWeigh Filler/Batcher Systems pair the 920i indicator with a FlexWeigh control panel to deliver turnkey weighing solutions for container filling, loss‑in‑weight dispensing and multi‑ingredient batching. Systems ship complete and ready to weigh.

Key features

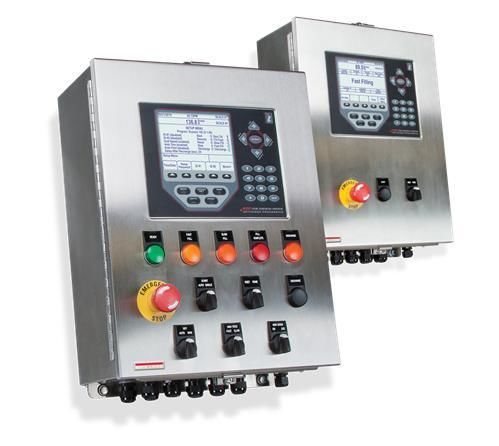

• Wall‑mount stainless steel enclosure (NEMA Type 4X)
• Front panel switches: E‑Stop, Reset/Resume, Start
• 920i indicator with softkeys for presets, CN#, ID#, formula#, totals
• Accumulating subtotal and total registers with transmitted audit trail
• Digital I/O board; relay rack and SSR outputs
• Factory‑tested, pre‑programmed models 101, 102, 103, 104, 201, 202 for rapid deployment

System descriptions
101 Basic Filler

• Operator places an empty container on the scale; system fills to a preset gross weight; container removed and cycle repeats.

102 Automatic Fill, Automatic Discharge

• Place empty container under the scale; system fills to preset weight and automatically discharges product into the container; continuous operation for subsequent containers.

103 Loss‑In‑Weight Filler

• Dispense preset net weights from a weighed supply until low level or a defined gross weight threshold is reached, then refill the supply container to high level.

104 Loss‑In‑Weight Filler (container refill/resume)

• Supply containers on the scale are dispensed until empty; if a container empties mid‑cycle, the cycle pauses and resumes when the container is replaced so dispensing continues from the correct point.

201 Four‑Ingredient Dual Speed or Eight‑Ingredient Single Speed Batcher

• Place empty container on scale; system fills multiple ingredients in sequence to preset formula weights; remove container and repeat for next batch.

202 Four‑Ingredient Dual Speed or Eight‑Ingredient Single Speed With Discharge

• Fill a tank or hopper with multiple ingredients in sequence and then discharge the combined batch into a vessel below.

Standard switches and outputs (summary)

• Standard switches fitted to all models: E‑Stop, Reset/Resume, Start.
• Discharge switch/output: available on models 102 and 202.
• Standard outputs across models: fast fill and slow fill available on all models; fill complete, zero tolerance, refill and other signals are model‑dependent (see system descriptions for applicability).

Optional switches

• Multiple front‑panel switch options (Manual/Off/Auto, Manual Ingredient Select, Push‑button Fill/Discharge/Dispense/Refill, Maintained/Off/Spring Return, Manual Feed, Jog, etc.) to match process requirements.

Optional front panel lights

• Examples: Ready (Green, part 121051) — used on 101, 103, 202; Fill Complete (Red, part 121052) — used on 101, 103, 201, 202; Filling (Amber, part 121053); Discharging (Blue, part 121056); Dispensing (Amber, part 121059); Refilling (Blue, part 121063); Low Supply (Red, part 121065); Fill Time Alarm (Red, part 121066). Multiple lamp/legend arrangements available per system.

Approvals / Notes

• UL listing available; approval documentation provided on request.
• Systems are designed for 120 VAC control voltage. Consult sales for 220 VAC or DC control voltage options.

Technical specifications

• Product family: 920i® FlexWeigh Filler/Batcher Systems — pre‑engineered models 101, 102, 103, 104, 201, 202
• Construction: Stainless steel wall‑mount enclosures, NEMA Type 4X
• User interface: 920i indicator with softkeys for presets, CN#, ID#, formula#, totals
• Controls: Front panel E‑Stop, Reset/Resume, Start; optional Manual/Off/Auto, Jog, Manual Ingredient Select and other switch types
• I/O: Digital I/O board; relay rack and SSR outputs; multiple standard and optional output signals for fast/slow fill, discharge, refill, refill complete, zero tolerance, slow cycle, etc.
• Functional modes: Basic filler, automatic fill/discharge, loss‑in‑weight dispensing (with refill/resume), multi‑ingredient batcher modes (dual or single speed)
• Registers & reporting: Accumulating subtotal and total registers; transmitted audit trail capability
• Power: Designed for 120 VAC line voltage (consult factory for other control voltages)
• Delivery: Factory tested and pre‑programmed; shipped complete and ready to weigh
