Bulk solids loss-in-weight feeder 920i® FlexWeigh

weightgravimetricfor industrial applications

Overview

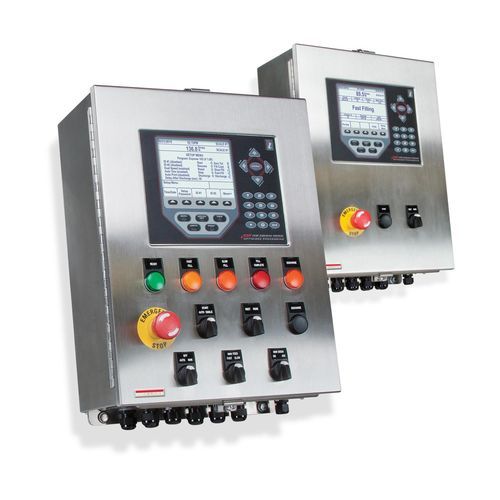

• The 920i® FlexWeigh Systems bulkweigher is a wall-mount stainless steel control enclosure for bulkweighing applications.
• Includes application programs 107 (Shipping), 108 (Receiving), 109 (Ship/Receive), 111 (Flip Flop Filler) and 112 (Flip Flop Filler w/ Discharge).
• Front panel controls: E-Stop, Start/Resume, End Cycle; Ship/Recv switch on 109. Softkeys for presets, ID1 and ID2.
• Supports accumulating weight streaming, fill/discharge sequence control and gate monitoring.
• Monitoring features include printer online checking, weigh and surge hopper overfill monitoring and transmitted audit trail.
• I/O: Digital I/O board plus relay rack and SSR relay outputs.

Options

• Pilot lights for error indication.
• Manual override switches.

Approvals / Warnings

• NTEP.
• UL Listed.
• WARNING: Cancer and Reproductive Harm California Proposition 65.

Mode-specific Descriptions

• 107 Shipping Bulkweigher: Designed for basic shipping mode; scale is loaded and discharged repeatedly until accumulated weight meets the target.
• 108 Receiving Bulkweigher: Designed for basic receiving mode; scale is loaded and discharged until no more product is received. Operator ends cycle with End Cycle button.
• 109 Ship/Receive Bulkweigher: Allows selection between ship and receive modes via a three-position locking key switch.
• 111 Flip Flop Filler: Fills two scales sequentially to target weight; while one fills, the other can be prepared.
• 112 Flip Flop Filler with Discharge: Similar to 111, with independent or manual discharge of the second scale.

Standard Switches / Outputs / Inputs (summary)
-- Standard Switches (columns: Feature | 107 | 108 | 109)
E-Stop mushroom | X | X | X
Start/Resume | X | X | X
End Cycle | X | X | X
Ship/Recv | - | - | X

-- Standard Inputs (columns: Input | 107 | 108 | 109)
Fill gate closed | X | X | X
Discharge gate closed | X | X | X
Surge hopper not full | X | X | X
Weigh hopper not full | X | X | X
Printer online | X | X | X

-- Standard Outputs (columns: Output | 107 | 108 | 109)
Slow cycle alarm | OPT | OPT | OPT
Gate alarm | OPT | OPT | OPT
Scale over fill alarm | OPT | OPT | OPT
Low surge alarm | OPT | OPT | OPT
Printer alarm | OPT | OPT | OPT
Open fill gate | X | X | X
Open discharge gate | X | X | X

Optional Switches (summary)
-- Optional Switches (columns: Switch | Type | 107 | 108 | 109)
Manual/Off/Auto | 3 position key selector | X | X | X
Man Fill On/-/Jog | Maintained/Off/Spring Return | - | X | X
Man Disch On/-/Jog | Maintained/Off/Spring Return | - | X | X
Discharge | - | X | - | -

Technical specifications

• Enclosure: Wall mount stainless steel.
• Application programs: 107 (Shipping), 108 (Receiving), 109 (Ship/Receive), 111 (Flip Flop Filler), 112 (Flip Flop Filler w/ Discharge).
• Front panel controls: E-Stop, Start/Resume, End Cycle, Ship/Recv (109 only); softkeys for presets, ID1 and ID2.
• I/O: Digital I/O board; relay rack and SSR relay outputs.
• Monitoring: Fill/discharge gate monitoring; weigh and surge hopper overfill monitoring; printer online checking; transmitted audit trail.
• Operation modes: Accumulating weight streaming; fill and discharge sequence control.
• Optional features: Pilot lights for error indication; manual override switches; multiple optional alarms and switch types as listed.
• Approvals: NTEP, UL Listed.
