Electronic weighing machine Challenger 3
for cranesIP65wireless

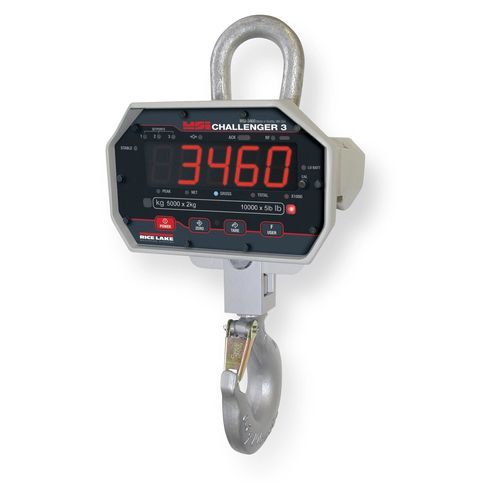

Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless
Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless
Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless - image - 2
Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless - image - 3
Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless - image - 4
Electronic weighing machine - Challenger 3 - Rice Lake Weighing Systems - for cranes / IP65 / wireless - image - 5
Add to favorites
Compare this product

Characteristics

Type
electronic
Applications
for cranes
Other characteristics
IP65, wireless

Description

Overview
  • Multi-color LED display with five 1.5 in (38 mm) digits and programmable brightness (red, orange, green)
  • Top lifting eye and 360° non-bearing swivel hook (Crosby® or equivalent)
  • Selectable lb/kg units; zero, tare, auto-off and auto-sleep functions
  • 6 V rechargeable battery with universal 115/230 VAC charger (NA plug standard); up to 80 hours typical use
  • Designed to meet OSHA, ANSI, ASME safety standards with 5:1 ultimate safety factor; NTEP certified for 250 to 10,000 lb


Options
  • RF modem for connectivity to MSI-8000, MSI-8000HD RF, MSI-8004HD RF remote displays, TranSend™ and LaserLight2™ (typical range 100–300 ft line of sight)
  • Rugged Remote (requires RF model, typical range 50 ft line of sight)
  • Universal direct power supply (115/230 VAC)
  • Audible alarm
  • Wi‑Fi communication available for specialty applications


Product Description
  • Legal-for-trade digital crane scale suitable for industrial lifting and weighing


Summary
  • Capacity up to 15,000 lb (6,804 kg) with ±0.1% accuracy (+1 d)
  • Five-digit LED display; annunciators include COZ, net, gross, total, peak, low battery, lb/kg, motion, setpoints, ACK IN, ACK OUT, RF
  • Functions: power, zero, tare, user (programmable); selectable filtering (OFF, LO, HI-1, HI-2)
  • Service counters for number of lifts over percentage of capacity and lifts over capacity
  • Environmental rating NEMA 4 / IP65; powder-coated cast aluminum housing; operating temperature -40 °F to 104 °F (-40 °C to 40 °C)


Specifications
  • Power: 6 V rechargeable battery; 115/230 VAC battery charger included
  • Resolution: 2,500 d max standard (up to 10,000 d max non-standard)
  • Accuracy: ±0.1% (+1 d) of applied load
  • Display: Five-digit, 1.5 in (38 mm) LED with programmable brightness control; toggle between red, orange, green digits
  • Displayable Units: Pounds or kilograms selectable
  • Keys/Buttons: Power, zero, tare, user (programmable)
  • Temperature: Certified 14 °F to 104 °F (-10 °C to 40 °C); Operating -40 °F to 104 °F (-40 °C to 40 °C)
  • Rating/Material: NEMA 4, IP65, powder-coated cast aluminum
  • Design Overload: 200% Safe / 500% Ultimate
  • Operating Time: Up to 80 hours between charging with typical use (less with optional RF model link)
  • Auto-Off Mode: Selectable 15, 30, 45, 60 minutes or off
  • Auto Sleep Mode: Power down during non-use and power up with weight change or any key press
  • Service Counters: Counts number of lifts over percentage of capacity and lifts over capacity
  • Filtering: OFF, LO, HI-1, HI-2 selectable
  • Warranty: One-year limited
  • Approvals: NTEP 86-021 (250 to 10,000 lb), OIML R76/2006-A-NL1-21.36, CE, UKCA
