Radio control 173014

with configurable buttonswith buttons4-button

Overview

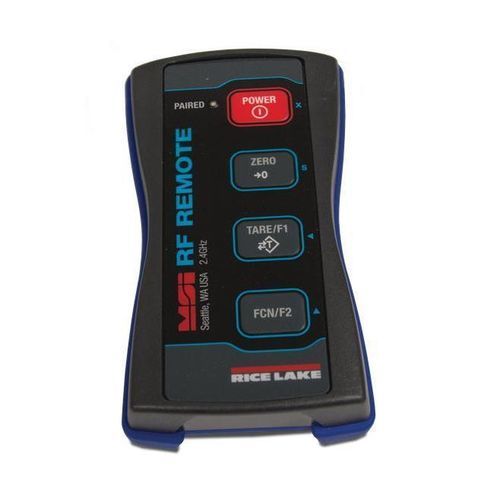

• Handheld wireless remote control for crane and industrial scales
• Compatible with: MSI-7300, Dyna-Link 2, MSI-7000 Series and all MSI Crane Scales
• Four-button interface: Power, Zero, Tare, User-programmable function

Approvals
CE Listed

Specifications
Power: Battery operated, three (3) AAA alkaline batteries
Function: Power — turns unit on/off; Zero — zeros applied load up to 100% of capacity (limited range in NTEP/OIML configurations); Tare — tared applied load and displays weight in net mode; User — programmable as test, units, net/gross, total, peak hold and setpoints
Radio Effective Range: Typically 100 to 300 ft line of sight
Warranty: One-year limited
Approval: CE Listed

Parts

• Part #173014 — MSI-Rugged Remote Control Non-CE for Products with XBEE Radios — List Price: $375.00
• Part #211841 — MSI-Rugged Remote Control CE for Products with XBEE Radios — List Price: Consult

Technical specifications

• Power: Battery operated, three (3) AAA alkaline batteries
• Function: Power on/off; Zero (zeros applied load up to 100% of capacity); Tare (tares applied load and displays weight in net mode); User-programmable (test, units, net/gross, total, peak hold, setpoints)
• Radio Effective Range: Typically 100 to 300 ft line of sight
• Warranty: One-year limited
• Approval: CE Listed
