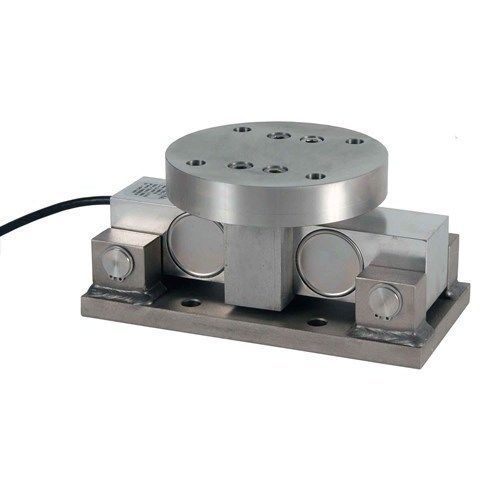

Nickel-plated weigh module RL931

stainless steelfor hopperweighing

Product Overview
The RL931 Series mounting assembly uses the RL93 load cell and foot plate to provide reliable performance for tank and hopper weighing. Designed for indoor and outdoor process control with medium to heavy capacities. Modules are offered with ball mount, round or square mount, and in nickel-plated or stainless steel construction.

Applications

• Medium to heavy capacity tanks, blenders, reactors and bulk inventory management
• Petroleum refining process control
• Chemical blending and batching

Features & Options

• Uses RL93 load cell and foot plate
• Designed for tank and hopper weighing
• Suitable for indoor and outdoor process control
• Mount types: ball mount, round mount, square mount
• Construction options: nickel-plated (RL931N) or stainless steel (RL931S)

Dimensions
RL931 Round Top Weigh Module dimensions (refer to product drawing for detailed dimensional data).

Parts (examples)
Part # | Description
161176 | Mount Assy, RL931N 5 ton Nickel Steel Mount Round top, RL93 Load Cell
161182 | Mount Assy, RL931N 10 ton Nickel Steel Mount Round top, RL93 Load Cell
161188 | Mount Assy, RL931N 15 ton Nickel Steel Mount Round top, RL93 Load Cell
161194 | Mount Assy, RL931N 20 ton Nickel Steel Mount Round top, RL93 Load Cell
161200 | Mount Assy, RL931N 25 ton Nickel Steel Mount Round top, RL93 Load Cell
161177 | Mount Assy, RL931S 5 ton SST Mount Round top, RL93 Load Cell
161183 | Mount Assy, RL931S 10 ton SST Mount Round top, RL93 Load Cell
161189 | Mount Assy, RL931S 15 ton SST Mount Round top, RL93 Load Cell
161195 | Mount Assy, RL931S 20 ton SST Mount Round top, RL93 Load Cell
161201 | Mount Assy, RL931S 25 ton SST Mount Round top, RL93 Load Cell

Technical specifications

• Mounting assembly designed for RL93 load cell and foot plate
• Application types: tank, hopper, reactor, blender, bulk inventory
• Capacities available (examples shown in parts list): 5, 10, 15, 20, 25 t
• Mount styles: ball mount, round top, square mount
• Material/finish options: nickel-plated (RL931N) or stainless steel (RL931S)
• Suitable for indoor and outdoor process control environments
• Product resources include a catalog PDF and dimensional drawing
