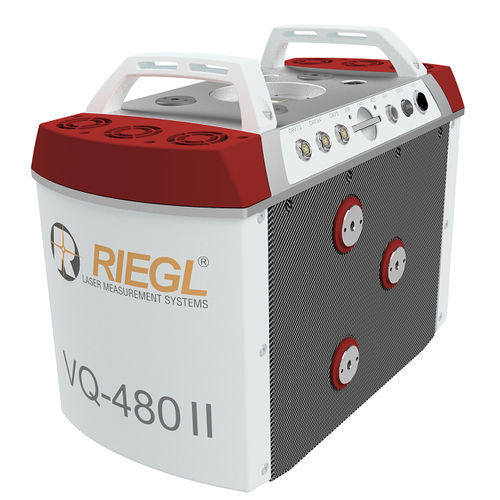

3D scanner VQ-480II

for long-distance measurementslaserLIDAR

In further development of the RIEGL VQ-480 Airborne Laser Scanner Series – the RIEGL VQ-480 II presents itself in a completly new design that successfully takes up the already proven qualities and leads them to a new standard of performance and user-friendliness. Its sophisticated design allows to further reduce the overall weight resulting in approx. 10 kg. Thus, the scanner is well suited for the use in manned but also in unmanned aircrafts. The VQ-480 II can seamlessly be integrated into stabilized platforms, e.g. standard gyromounts, and also into even small hatches. Main Features high accuracy ranging based on RIEGL Waveform-LiDAR technology high laser pulse repetition rate up to 2 MHz measurement rate up to 1,250,000 measurements/sec perfectly linear and parallel scan lines compact, & lightweight design: ready for integration in UAVs with higher payload capacity wide field of view of 75° interfaces for up to 5 optional cameras mechanical and electrical interface for IMU/GNSS integration removeable storage card and integrated Solid State Disk (SSD) for data storage compatible with stabilized platforms and even small hatches seamless integration and compatibility with other RIEGL ALS systems and software packages Main Applications Agriculture & Forestry City Modeling Corridor Mapping Based on RIEGL's proven Wdveform-LiDAR technology, the scanner provides highly accurate point clouds, excellent vertical target résolution, calibrated réflectance readings, and puise shape déviation for unsurpassed information content on each single measurement.
