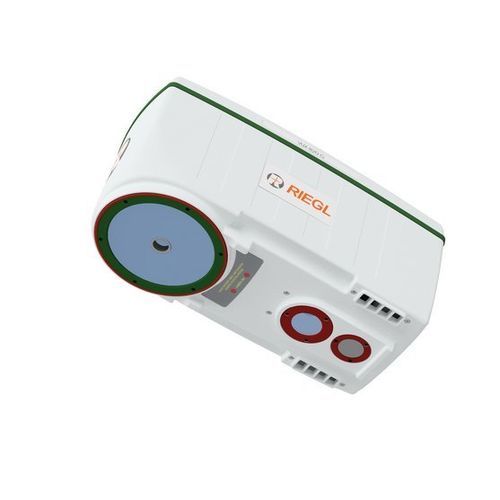

LIDAR scanner VUX-820-G

2-axisfor mappingfor the aerospace industry

Product Details The RIEGL VUX-820-G is a fully integrated “all-in” package solution for topo-bathymetric airborne LiDAR surveying. It comes equipped with an integrated RIEGL RiLOC-F inside inertial navigation system and an integrated RGB camera, supplementing the LiDAR data with image data. - Compact, powerful LiDAR sensor providing up to 2.2 Secchi depth - RIEGL RiLOC-F inside inertial navigation system - Integrated RGB camera to complement LiDAR data with imagery - RIEGL's proprietary software licenses for generating georeferenced and refraction-corrected point clouds The compact design and light weight of just 5.7 kg (12.5 lbs) make the RIEGL VUX-820-G especially well-suited for use on UAVs. Features like a display and status LEDs enhance interactive handling and operation. The VUX-820-G, RIEGL's complete solution for topo-bathymetric surveys, makes bathymetric LiDAR more accessible by enabling easy integration and operation. Main Features - Lightweight: 5.7 kg (12.5 lbs) - Integrated RIEGL RiLOC-F inside inertial navigation system - Integrated RGB camera - Designed for combined topographic and bathymetric UAV-based survey - High accuracy ranging based on echo digitization and online waveform processing with multiple-target capability - Concurrent comprehensive full waveform storage for all measurements - High spatial resolution due to measurement rate of up to 100 kHz and high scanning speed of up to 50 scans/sec - Compact, lightweight and robust housing for easy mounting on UAV or integration into payload pods when used with crewed aircraft - Status information display and system parametrization via user interface Main Applications - Coastline and Shallow Water Mapping - River and Water Reservoir Surveying - Monitoring Tasks in Hydro Engineering and Harbor Management - Hydro Archeology Technical Data Overview - Measurement Rate: 5 kHz, 50 kHz, 100 kHz - Max. Water Depth Penetration in Secchi Depths: 2.2, 2.0, 1.8 - Minimum Range: 20 m - Accuracy / Precision: 20 mm / 15 mm - Laser Wavelength: 532 nm, green Software - RiPROCESS - RiACQUIRE - RiUNITE - Airborne Data Processing Software AddOn RiHYDRO (as supplement to RiPROCESS) - Special libraries: RiVLib, RDBLib - Plugins: RiMAP Plugin for ArcGIS Characteristics / Technical Specifications - Weight: 5.7 kg (12.5 lbs) - Integrated inertial navigation system: RIEGL RiLOC-F inside - Integrated RGB camera - Measurement rate: up to 100 kHz - Scanning speed: up to 50 scans/sec - Max. water depth penetration: up to 2.2 Secchi depths - Minimum range: 20 m - Accuracy: 20 mm - Precision: 15 mm - Laser wavelength: 532 nm (green) - Full waveform recording for all measurements - Designed for UAV and crewed aircraft integration - Status display and user interface for system parametrization
