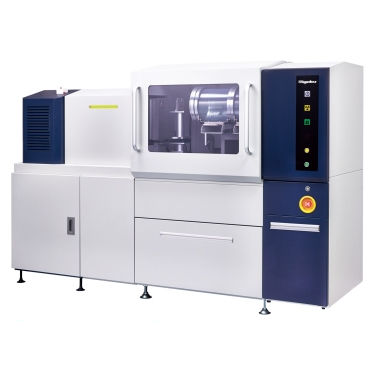

SAXS measuring device NANOPIX

Rigaku NANOPIX SAXS/WAXS measurement system is a new X-ray scattering instrument designed for nano-structure analyses. NANOPIX can be used for both small angle scattering (SAXS) and wide angle scattering (WAXS) measurements, which makes it possible to evaluate multi-scale structures from sub-nanometer to nano-order (0.1 nm to 100 nm). It achieves the highest level of small angle resolution (Qmin to 0.02 nm-1) for a laboratory SAXS instrument. Small angle X-ray scattering (SAXS) Small angle X-ray scattering (SAXS) is a technique used to study nano-scale structures of atoms or molecules as well as their non-uniformity by measuring the diffuse scattering from unequal electron density areas. SAXS experiments are performed in a wide range of fields from R&D to quality control. SAXS/WAXS measurements for many applications NANOPIX SAXS/WAXS measurement system is applicable to a variety of materials, such as: solids, liquids, liquid-crystals, or gels (with ordered and disordered structures). Diverse applications include: nano-particle size distribution analyses, three-dimensional protein molecule structure analyses, identification of molecular assembly or disassembly, and research of advanced materials, such as carbon fiber-reinforced plastics (CFRP).
