Fuel tank CD series

cylindricalfor dieselcarbon steel

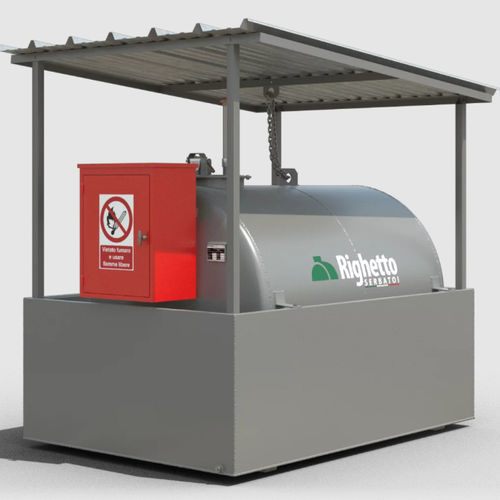

Approved above-ground tank, made of first choice carbon steel sheet type EN10025 S235JR, for the refueling of diesel from 500 to 9000 liters with a 110% containment basin as per current legislation. With approval issued by the Ministry of the Interior, in reference to the Ministerial Decree. dated 22.11.2017. Manhole d. 420 mm with watertight gasket; 3 loading cap with closure and quick connection with brass lock; Load limiting valve at 90%; Mechanical level indicator with protective structure; 1”1/2 vent mushroom with flame arrester screen; Suction connection in a suitable position to avoid sucking any impurities from the bottom of the tank; 1″” ball cock; 1″ non-return valve; Total drain plug for any periodic maintenance;; Earthing socket and equipotential bonding; Vacuum lifting eyebolts;” Load limiting valve at 90%; Mechanical level indicator with protective structure; Total drain plug for any periodic maintenance;
