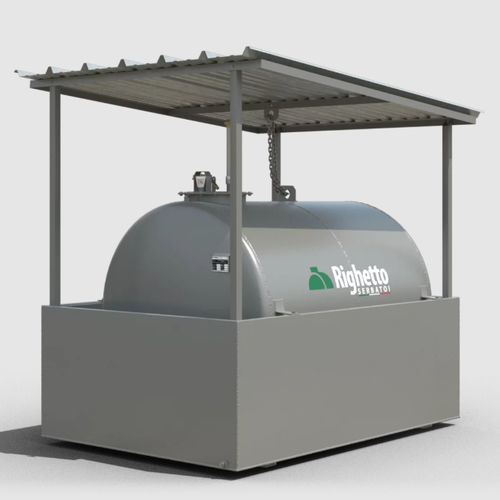

Diesel storage tank for heatingearthinggenerator
Add to favorites
Compare this product
Characteristics
- Function
- diesel storage, for heating, earthing
- Product applications
- generator
- Material
- carbon steel, brass, zirconium silicate
- Type
- cylindrical
- Applications
- outdoor, containment
- Other characteristics
- horizontal, with level sensor, with protective cage
- Capacity
Max.: 9,000 l
(2,377.548 gal)Min.: 490 l
(129.444 gal)
Description
Tank approved by the Ministry of the Interior, made in compliance with the regulations and directives indicated below:
Ministerial Decree of 07/31/1934
Ministerial Decree of 04/28/2005
Ministerial Decree of 07/13/2011
complete with 110% containment basin, protective canopy and manhole with connections for power supply or heating (without dispenser).
Technical features
Made of first choice carbon steel type EN10025 S235JR, painted externally
Padlockable 3" quick-release brass filler cap;
Load limiting valve at 90%;
1”1/2 brass vent mushroom with flame arrester screen;
Float level indicator visible externally;
Manhole d. 420 mm. with bolts and gasket;
n2 1" hoses for return;
Vacuum lifting eyebolts;
Drain sleeve on the bottom for any periodic cleaning with safety cap;
Earthing socket and equipotential bonding;
1" non-return valve;
1" ball valve.
