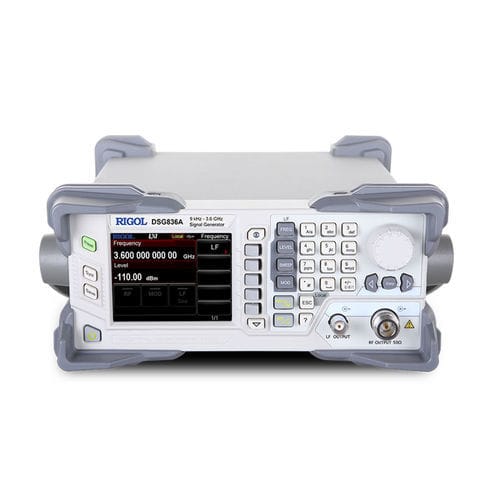

Signal generator DSG800A series

pulsefrequencyRF

The DSG800A delivers outstanding performance in the same class of economical RF signal sources with full frequency and power scanning capabilities, as well as AM/FM/ØM analog modulation, powerful pulse modulation and newly added IQ modulation. Compared to similar products, the DSG800A has the smallest footprint, light weight and superior portability, making it an excellent choice for educational laboratories, industrial production lines, development and research applications. Complete AM/FM/ØM Analog Modulation DSG800 provides a variety of analog modulation functions such as AM/FM/ØM, which is suitable for signal simulation requirements in various applications such as FM radio and wireless microphone. Pulse Modulation It produces high quality pulse modulated signals with rise/fall times typically less than 10 ns and on/off ratios greater than 70 dB. Support for internal and external modulation. Built-in pulse generator can generate pulse sequence and output to the outside as a separate pulse generator Low Phase Noise High signal purity, phase noise typical value <-112dBc/Hz@20kHz; better high-stability clock reference with better near-phase noise capability.
