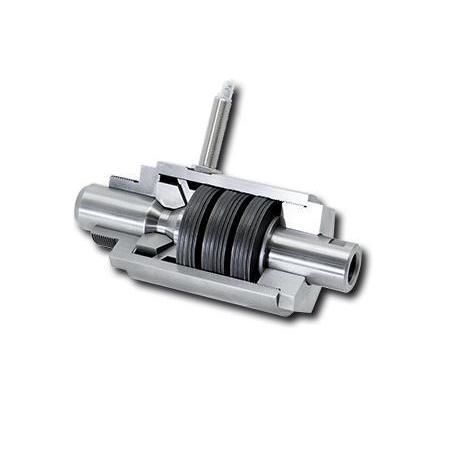

Safety clutch force limiter PA

Overview
The PA series Force Limiter protects drive systems by disengaging when a preset force is reached. It can be fitted with an optional non-contact proximity switch to provide an early warning when the set force is approached or to signal disengagement.

Features

• Bidirectional force limiting
• High response accuracy
• Automatic re-engagement after disengage
• Maintenance-free design
• Robust, simple construction
• Compact and easy to install or build onto existing systems
• Disengaging force up to 140 000 N
• Finely adjustable disengaging force
• Optional non-contact proximity switch for warning or disengage signal

Product information

• Datasheet PA
• Catalogue: Overload Clutches

Technical specifications

• Series: PA
• Type: force limiter
• Force limiting: bidirectional
• Maximum disengaging force: up to 140 000 N
• Disengaging force adjustment: fine adjustment
• Response: high accuracy
• Re-engagement: automatic
• Maintenance: maintenance-free
• Construction: robust, simple design
• Option: non-contact proximity switch for early warning or disengaging signal
