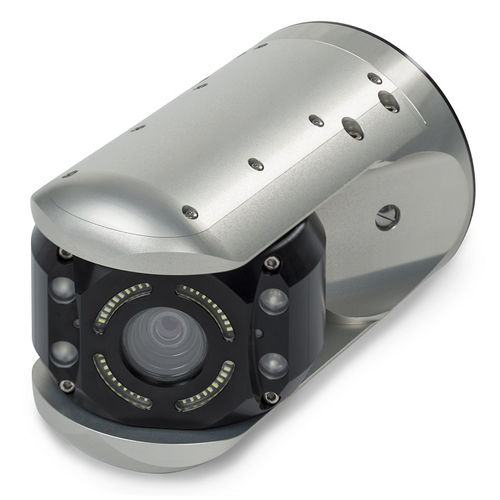

Sewer camera RI 106 FW

digitalspark optical emissioninspection

Be ideally equipped for sewer inspections in the larger diameter range - with strong optics and all the advantages of a pan & rotate head. • Pan & rotate camera • Digital • DN 150 - DN 1200 • (in conjunction with back eye camera from DN 300) • Pan angle: ±130° • Determination of diameter without PC from DN 200 to DN 1200 • Pan angle incl. viewing range ±151° • Endless rotation • Slip clutch in rotation and pan axis • Automatic and manual aperture control • Automatic self leveling picture (can be disabled) • Camera head zero setting with selectable remote focusing • Pan axis supported on both sides • High-performance LED light with separate light control for close-up and remote areas • Protective glass combination made of sapphire and special plastics • Pressure sensor with pressure drop alarm function • Two-point laser • Automatic and manual aperture control • 20x zoom without optical losses and 10x digital • Macros for moving along sleeves • 90° pan position left/right
