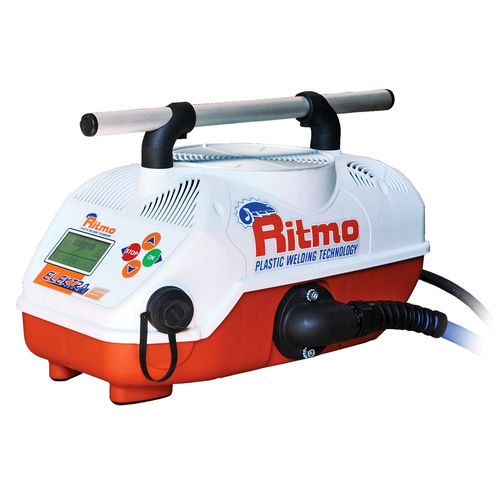

Electrofusion welding machine ELEKTRA S

automatic

ELEKTRA S is an universal electrofusion machine characterized by high performance and reduced weight. It is available in two different power supplies: 230V and 110V. The welding machine has been designed to weld EF fittings up to OD 200 mm (230 V version) or 315 mm (110 V version) for PE, PP, PP-R high pressure pipelines. It can weld EF fittings within the range 8 ÷ 48 V. Provided with: - High resistance technopolymer shell - "Defender" protection system against dust and rain - Lifting handle and cable wrapping - in-built memory of 4000 welding report - Possibility to download the welding report thanks to the USB port in PDF, CSV, BIN format. For BIN format it is necessary the RITMO transfer software. The USB port is also used to upgrade the welding machine firmware and to plug the ESC-POS printer to get immediately the welding report printed on site. - 2,4” LCD Graphic display - Intuitive control panel with the possibility to customize the menu with 20 different languages - 90° universal connectors 4.0-4.7mm, no need of adapters - Laser scanner in order to read the EF fitting barcode and to set automatically the welding parameters according to the ISO 13950. The laser technology of the scanner enhances the reading quality in case of severe light reflections or contrasts. It is also possible to enter manually both the welding parameters (Voltage/Time) and the welding barcode digits. - Traceability: ISO 12176-3 Operator traceability; ISO 12176-4 Fitting/ pipe traceability ON REQUEST (ACCESSORIES) - In-built GPS device
