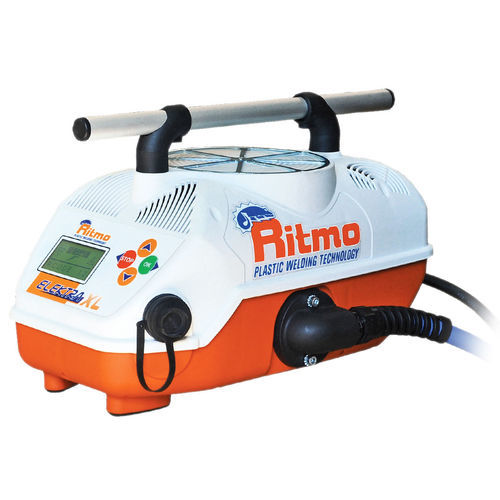

Electrofusion welding machine ELEKTRA XL

automatic

ELEKTRA XL is an universal electrofusion machine characterized by high performance and reduced weight. The welding machine has been designed to weld EF fittings up to OD 1600 mm for PE, PP, PP-R high pressure pipelines. It is available in the 230 V version and in two different EF fittings range: 8 ÷ 48 V or 8÷80 V. - High resistance technopolymer shell - "Defender" protection system against dust and rain - Lifting handle and cable wrapping - in-built memory of 4000 welding report - Possibility to download the welding report thanks to the USB port in PDF, CSV, BIN format. For BIN format it is necessary the RITMO transfer software. The USB port is also used to upgrade the welding machine firmware and to plug the ESC-POS printer to get immediately the welding report printed on site. - Control panel with 20 different languages - 90° universal connectors 4.0-4.7mm, no need of adapters - Laser scanner in order to read the EF fitting barcode and to set automatically the welding parameters according to the ISO 13950. - Traceability: ISO 12176-3 Operator traceability; ISO 12176-4 Fitting/ pipe traceability ON REQUEST (ACCESSORIES) - In-built GPS device Technical features: Materials HDPE/PP/PP-R Working range Ø 20 ÷ 1600 mm - 1/2" IPS ÷ 63" IPS Power supply - 230 V ±15% single phase 50/60 Hz Total abdorbed power (60% Duty Cycle output) 3500 W Max output current - 120 A Working temperature range -20° +50° C Memory capacity 4000 reports Protection degree IP 54 Dimensions 246 x 390 x 240 mm Weight 9,4 Kg
