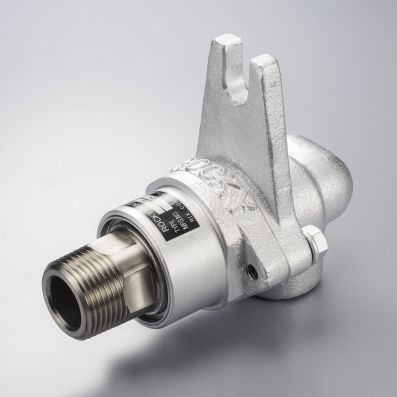

Water rotary union CB seriesmulti-passagefor the steel industryflange
Add to favorites
Compare this product
Characteristics
- Medium
- for water
- Number of passages
- multi-passage
- Applications
- for the steel industry
- Other characteristics
- flange, compact, light
- Rotational speed
Max.: 10 rpm
(62.83 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Pressure
Max.: 15 bar
(218 psi)Min.: 0 bar
(0 psi)- Nominal size
Max.: 2 in
Min.: 0.5 in
Description
Another customer of the business
Steel
･No oil supply: Non-oil materials are used for seal and bearing part.
Therefore, No burning trouble is occurred.
･Low torque:Seal parts is not only O ring but also teflon cap seal that is enclosed filler at inner
diameter sliding part.
It achieves low torque because of wear resistance and low sliding friction.
･Compact:It enable to install narrow space because of compact and light.
･ Standard size 1/2 ~ 2
* Contact us if the size is over standard type.
･ Connection part shape: Screw (RH or LH) or Flange
