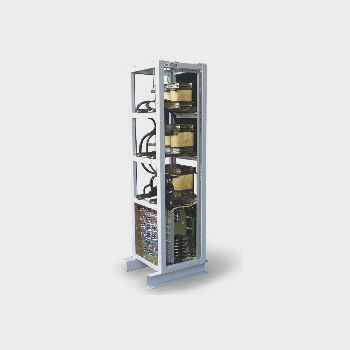

Three-phase harmonic filter reactor XR-XXXXXXXX

• IC semiconductor foundry • PCB factory • Fabric factory • Chemical industry • Platlng industry • aper industry • - TFT-LCD factory • - Air conditioner • - Vehicle factory • - Steel industry • - Glass industry • - Large size UPS • Other rectification equipment and those industry environment use converter heavily that will cause seriously electrical pollution by harmonics Features Our harmonic filter system is a kind of passive harmonic filter that can apply on single or multi-pulse converter and other six pulse three phase diode or the load composed by silicon control rectifier .It can improve the quality of power by resisting the input harmonic reflect to the power system. Feature: • International grade certificate: • We have passed the ISO9001:2015 certificate , and we believe the certificate speak for themselves • Non-wave trap design that do not need the system analysis and do not effect by resistance and load and harmonics • Harmonic filter is able to cope with the low frequency harmonics that caused by the load of 3 phase 6 pulse rectifier，the harmonics included: 5 th , 7 th ,11 th , 13 th , 17 th , 19 th, 23 th , 25th • Harmonic can be resisted without adjustment of the resonant frequency in filter or variable capacitor、inductor、other component • Our harmonic improvement product is a type of series passive filter，and the whole filter is composed of inductor and capacitor and also with damping resistor that has the function of overexcitation and resonant protection • Harmonics filter will not resonate with the power system • Harmonic and the upstream harmonics load will not be absorbed by the harmonics filter
