Synchronization controller MultiControl II duo accu

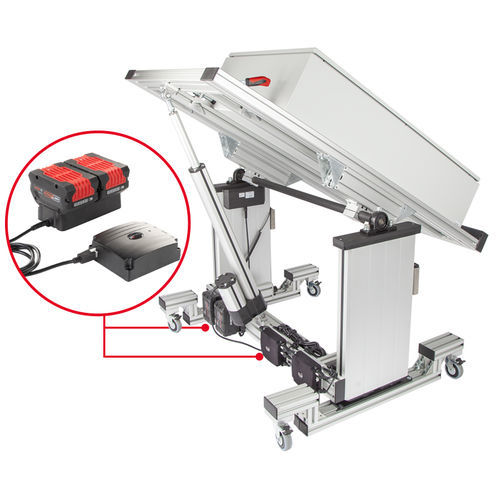

The MultiControl II duo accu is a wireless, battery-powered synchronization controller for lifting columns and electric cylinders, designed for mobile adjustment tasks in intralogistics and assembly workstations. It complements the MultiControl II range as a compact, flexible solution with a battery adapter accepting standardized batteries.

Key benefits MultiControl II duo accu

• Ready to use – no fixed rest times thanks to dynamic duty-cycle calculation
• Safe – built-in duty-cycle, overcurrent and temperature monitoring for overload protection
• Easy – intuitive operation via a handheld controller with graphical display
• Flexible – battery operation enables location-independent ergonomics
• Powerful – up to 150 double strokes per battery charge
• Efficient – standby time up to 15 days
• Compatible – fully compatible with the BLOCAN product portfolio
• Expandable – synchronous operation of up to 16 drives (up to 8 controllers)
• Customizable – can be implemented as Premium Customized for special applications

Characteristics / Specifications / Technical data

• Model: MultiControl II duo accu
• Power / Versions: Battery variant (accu) and DC variant (24 V) available
• Battery concept: Dedicated battery adapter for standardized batteries (compatible with major battery manufacturers)
• Range / Operating time: Up to 150 double strokes per charge; standby consumption < 1 W; standby time up to 15 days
• Interfaces: Serial interface RS-485; protocol: Modbus RTU
• I/O: Optional I/O interface with 16 digital inputs/outputs for PLC connection
• Protection functions: Built-in monitoring of duty-cycle, overcurrent and temperature (overload protection)
• SPP (Premium): Integrated Smart Product Protection – software-based collision detection (adjustable sensitivity)
• Positioning functions (Premium): Relative and absolute positioning plus memory positions; encoder emulation available
• System integration: Can be combined into larger systems (master monitoring of battery state); DIN-rail adapter for control cabinet mounting available
• Operation: Handheld control with graphical display; various handheld variants (2- or 6-button), foot switch and handheld drawer available
• Software: RKX software (service interface); Basic and Premium function sets
• Accessories: Cables for networking battery and controller as well as between controllers, I/O interface, adapter cables
