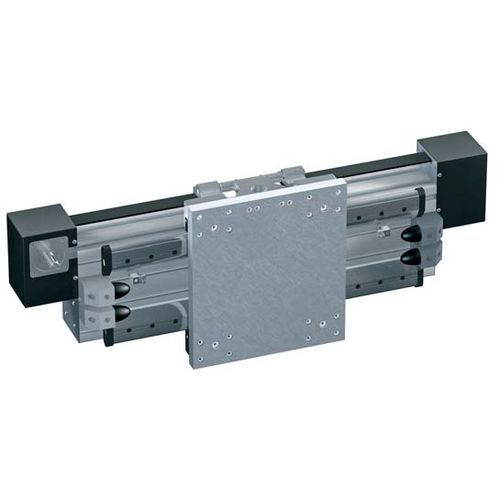

Heavy-duty linear unit D-Line series

timing beltelectricaluminum

Heavy duty with maximum stability The basis of the heavy duty linear units are the well-known heavy duty profiles from the product range group BLOCAN®-Profile assembling system. The aluminium profiles 80x80, 80x160, 80x240, 160x160, 160x240 and 160x320 mm combine very high bending and torsion resistance with relatively little weight. This way, even big gantry cranes and machine support structures that used to be mounted exclusively on steel structures, can be now built with lightweight aluminium profiles. By means of DIN slot stones add-on parts can be fitted to the 18 mm wide profile slots. Also our existing BLOCAN® products (with a 10 mm profile slot) can be attached without difficulties to the new profiles by means of accessories. Thus, we carry on our RK modular system philosophy which permeates all our product ranges. A further highlight in this profile range, are the special designed press mount connectors for the heavy duty area. The name is self explanatory: the profiles are connected under pressure thus guaranteeing a high load bearing capacity. The connection can be disassembled again at any time. Here, no machining of the aluminium profiles is needed thus decreasing considerably the assembly costs in comparison with other profile systems and steel structures.
