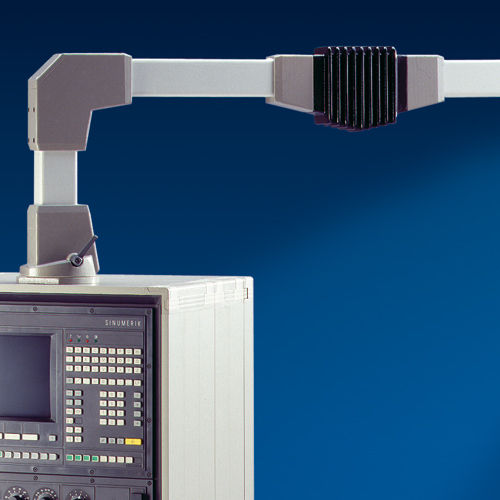

Support arm system GT 50, 60, 80

• Variable constructions, consisting of series produced elements, for individual attachment and positioning of control panels. Designed in clear lines the carrier system harmoniously fits in with the modern working environments. • Free system construction using high-solid functional elements and tubular steel 80x80 mm. • Consistent IP 65 ingress protection up to the control panel is achieved by means of a selfcontained tube system with integrated seals in places where the system elements are joined. • Installed cables are protected from damage due to burr-free inner contours, an unrestricted cable passage of 49 cm², and flush joints between tube and system elements. • Swing can be adjusted to on-site requirements using adjustable fittings in the rotary and swivel elements. • Easy alignment of carrier arm using pre-formed tube supports in the elements. Adjusting screws freely accessible without having to remove the bellows. • Adjustment of swing forces to different loads using inifinitely variable pivot bearings.
