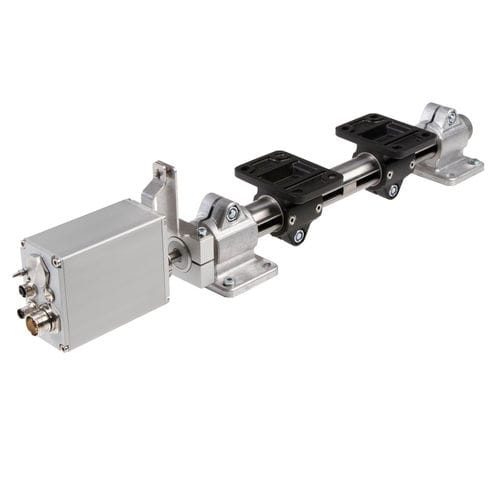

Single tube linear axis E series
electricwith positioning systemautomated format adjustment

Single tube linear axis - E series - RK Rose+Krieger GmbH - electric / with positioning system / automated format adjustment
Single tube linear axis - E series - RK Rose+Krieger GmbH - electric / with positioning system / automated format adjustment
Single tube linear axis - E series - RK Rose+Krieger GmbH - electric / with positioning system / automated format adjustment - image - 2
Single tube linear axis - E series - RK Rose+Krieger GmbH - electric / with positioning system / automated format adjustment - image - 3
Single tube linear axis - E series - RK Rose+Krieger GmbH - electric / with positioning system / automated format adjustment - image - 4
Add to favorites
Compare this product
Go to the RK Rose+Krieger GmbH website for more information

Characteristics

Type
single tube
Operation
electric
Other characteristics
with positioning system, automated format adjustment
Stroke

Min.: 0 µm

Max.: 2,740 µm

Force

Min.: 0 N

Max.: 5,650 N

Description

E tubular linear unit Features: • Linear actuator for light to heavy moving applications • Sizes (30, 40, 50, 60) can be combined • Comprehensive range of accessories • Fully automated drives PowerDRIVE-Positioning and PowerDRIVE-Motion • Electronic control unit PowerDRIVE-Box for up to 5 actuators • Pre-packaged software modules PowerDRIVE-Lib • Single-cable wiring (hybrid cable) PowerDRIVE-Connect • Complete retrofit set PowerDRIVE-TouchBox • Non-wearing, brush-free 24 V DC motor and compact spur gear • Sturdy housing in aluminium or stainless steel • Magnetic multiturn sensor for precise positioning • Integrated joystick for setup without PLC programming • Wide temperature range from -10°C to +60°C

Catalogs

Go to the RK Rose+Krieger GmbH website for more information
