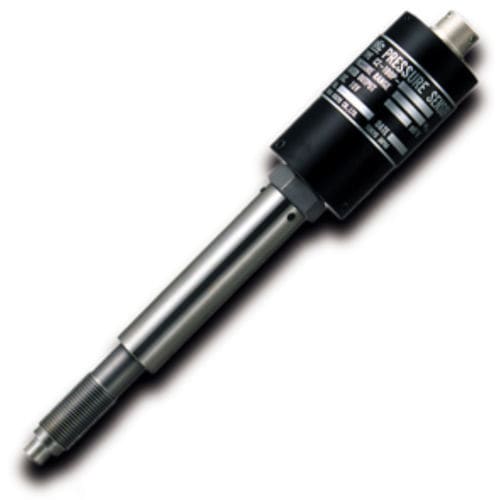

Relative pressure sensor CZ-100P

strain gaugewith diaphragm seal

Pushrod system which provides no risk of resin contamination when the sensor is damaged. Longtime seller of resin pressure sensor. Main features Environment friendly The use of a pushrod design eliminates the risk of resin contamination by the filling such as mercury. Main specification Pressure transducing method : 4 edge bonded strain gauge type Wheatstone bridge. Range (Rated pressure) : Refer to pressure range code. Accuracy and Linearity : * For Hastelloy C : Contact to RKC Hysteresis : Within ±0.2% of span (1MPa type) * For Hastelloy C : Contact to RKC Allowable maximum temperature of diaphragm : 400°C Allowable maximum temperature of diaphragm: 150°C * When the surface temperature of the lower part of the external case is 134°C, the temperature of the strain gauge is 150°C. If the temperature of the strain gauge exceeds 150°C, performance cannot be maintained. Please isolate the sensor from the heat source by covering the heat source. Another solutions may include: Extending the sensor stem length, installing the sensor at an angle or horizontally, and so on. These methods are expected to suppress the temperature rise on the strain gauge. Allowable overload pressure : 120% of span [1000% of span for LLA type (0.5MPa), 500% of span for LLA type (1MPa) Marginal overload: 150% of span [2000% of span for LLA type (0.5MPa), 1000% of span for LLA type (1MPa
