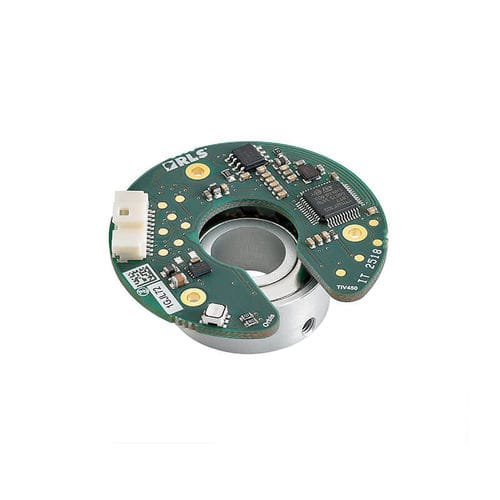

Rotary encoder module Orbis™

Orbis™ is an absolute, through-hole rotary encoder suitable for applications where a typical OnAxis encoder cannot be mounted at the end of the rotating shaft due to space constraints. Orbis™ through-hole measuring principle allows customization, with various board and magnet sizes to suit your application. Features Multi-turn counter option Status LED Benefits True absolute encoder Through-hole design enables its mounting anywhere along the shaft Optional self-calibration after assembly Wide installation tolerances Built-in self-diagnostics Resistance to chemicals Product data System Reading type Axial Accuracy ±0.25° Accuracy thermal drift ±0.003°/°C Repeatability ±2 LSB (counts, unidirectional) Digital hysteresis ±2 LSB (counts) Electrical Supply voltage 4.5 V to 5.5 V (at the connector) Current consumption Typ. 65 mA (no output load) Mechanical Actuator material Anodised aluminium Magnet material Neodymium with Ni-Cu-Ni protective layer Mass Readhead: 5.3 g Environmental External magnetic field Max ±3 mT (DC or AC) on top side of readhead Humidity 0 to 70 % non-condensing
