Incremental rotary encoder AM4096 series

absolutemagnetic12-bit

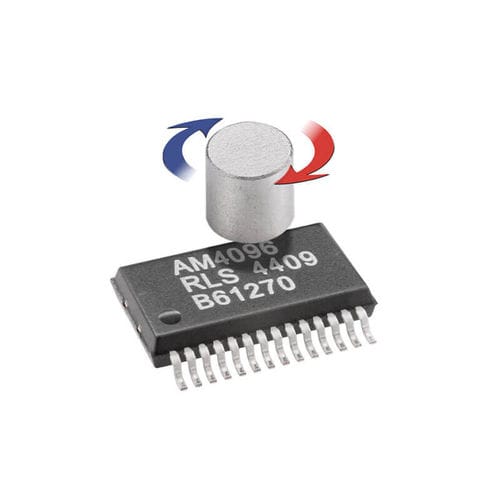

Within the miniature chip is the processing circuitry to provide outputs in absolute SSI, incremental, linear voltage, tacho and UVW formats with resolutions to 12 bit. The zero position can also be selected at point of installation. The AM4096 can be used in a wide range of non-contact position or velocity measurements, such as motor motion control and commutation, robotics, camera positioning, various encoder applications, battery powered devices and other demanding high resolution applications. Features Contactless angular position encoding over 360° Selectable resolutions to 12 bit Programmable zero position Benefits High speed operation Power save mode Integrated EEPROM RoHS compliant Product data System Outputs Analogue sinusoidal, Commutation outputs: U, V, W, Incremental, Linear voltage, SSI, Tacho output, Two wire interface (TWI) output Hysteresis 0.12° typ. Environmental RoHS Compliant with EU Directive 2002/95/EC
