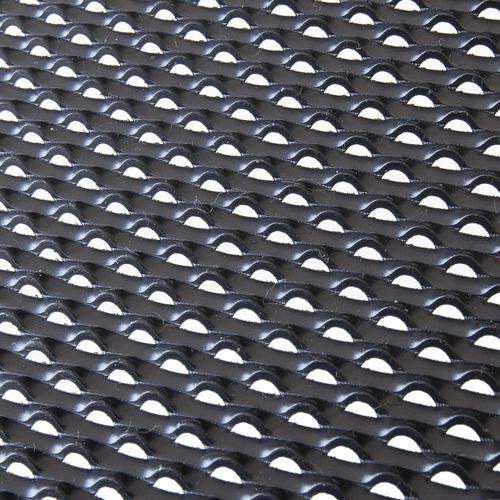

Metal screen plate R)0.6Z5X2.7

corrosion-resistantperforatedfor the food industry

Overview
Hammer mill screens with rasp perforation are engineered for fine grinding applications where reduced clogging and extended service life are required. The louvre-shaped holes (narrow at the entry and wider at the exit) create a rasping surface that assists particle size reduction while allowing controlled particle passage. Compared with standard round perforation this geometry improves wear performance and reduces blocking risk.

Applications

• Pet food and aquafeed production
• Cereal and grain processing
• Wood and biomass milling

Key benefits

• Rasping effect that assists fine grinding and improves throughput quality
• Hole sizes can be specified smaller than material thickness for increased durability
• Entry holes smaller than exit holes reduce clogging and facilitate discharge
• Option to apply RMIG SurfacePlus thermochemical treatment for abrasive environments

Materials, hole sizes and thicknesses

• Hole sizes available from 0.20 mm up to 3.00 mm to cover fine and coarse tasks
• Materials: mild steel and stainless steel options
• Various sheet thicknesses available; typical ranges up to ~1.5 mm or up to ~2.0 mm depending on perforation and application

RMIG SurfacePlus (surface treatment)
RMIG SurfacePlus is a thermochemical treatment that forms a hard iron nitride-oxide wear layer on the surface. It is offered to increase wear and corrosion resistance of rasp milling screens and to reduce maintenance intervals in abrasive processes.

RMIG SurfacePlus - features

• Surface hardness: min. 500 Vickers (HV0.025)
• Hard layer thickness: min. 10 µm
• Improved wear resistance and extended screen lifetime
• Non-toxic surface treatment
• Increased corrosion resistance for storage and handling
• Applicable to all types of hammer mill screens

Examples of rasp perforation (sample entries)

• Pet food – R)0.6Z5X2.7 – Hole size 0.6 mm – Pitch 5 mm – Thickness 1.00 mm (various open areas)
• Pet food – R)0.8Z5X3.3 – Hole size 0.8 mm – Pitch 5 mm – Thickness 1.00 mm (various open areas)
• Pet food – R)1.0Z5X3.7 – Hole size 1.0 mm – Pitch 5 mm – Thickness 1.00 mm (various open areas)
• Range examples: Rasp perforation 0.20–1.00 mm (typ. up to 1.5 mm thickness); 1.00–1.50 mm (typ. up to 2.0 mm thickness); 1.50–2.00 mm (typ. up to 1.5 mm thickness)

Notes
Rasp milling screens are intended to deliver finer results with fewer maintenance interruptions and longer screen life. Select material, thickness and optional SurfacePlus treatment according to feed abrasivity and production requirements.
