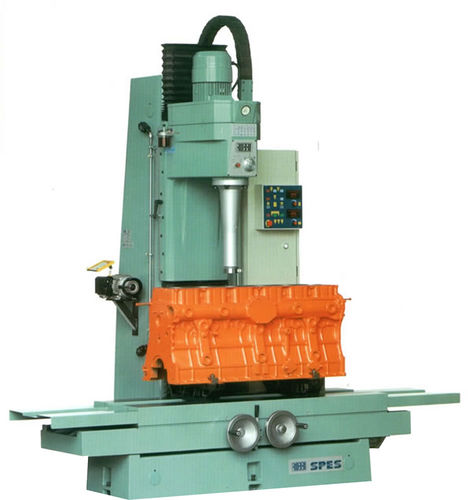

Conventional boring milling machine Spes 2.0

vertical

Spindle rotation speed and m / revolution feeds continuously variable Vertical head movement: managed by an electronic handwheel with setting incements recirculating ball screws driving Work feeds at variable speed For the dimensions of the table, the capacity of reaming up to 320 mm and the distance between the head and the table , is suited to the machining of engine blocks of large size ( though without exceeding in size , which would make it impractical in light of machining blocks ) Ideal for heavy duty applications where heavy stock removal requests in a ‘ single pass Standard Equipment Complete electric equipment with control at low tension. Tool automatic positioning at the end of boring Spindle motor speed variable control 2 setting up supports 100 mm high with bolts 2 setting up supports 220 mm high with bolts 4 locking clamps with bolts Boring infeed control system Centering system Set of spanners Operating manual Surface-milling attachment complete with spindle, tool-plate with cutting tools (Ts 380) Automatic longitudinal table feed variable Extra Equipment Max Spes Alesatrice Per Cilindri Robbi Group Tool grinding device (electric motor included), abrasive wheel, diamond wheel, grinding jig Boring spindle for ø 31 ÷ 320 mm, complete with tool setting micrometer, cutting tools with holders, centering device Fixture for fat cylinder clamping Universal fixture for V engine clamping Universal fixture for cylinder liner clamping Fixture for motorcycle cylinder clamping Special milling and drilling splindel morse taper N 3 – 4 – Iso 40 – Iso 50 Micrometric devices for measuring cylinder bores – range 30÷300 mm
