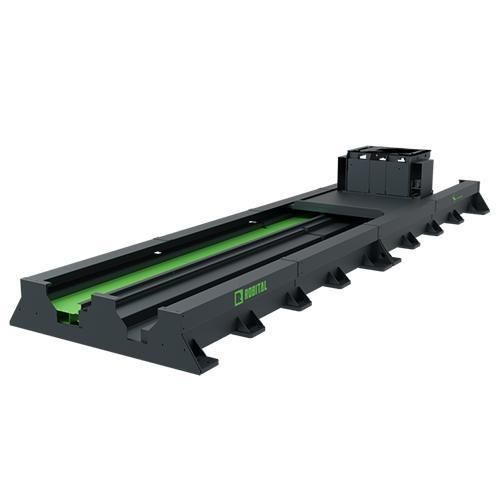

1-axis linear module LML

single-axismodular

Overview

• High-precision synchronous robotic slider for adding a 7th axis to industrial robots
• Modular design with one-module length of 3000 mm
• Maximum velocity 0.6 m/s and repeatability ±0.025 mm

Function
Synchronous robotic sliders are installed to provide a linear 7th axis to 6-axis robots, increasing reach and accessibility for operations such as welding, material handling and assembly. They deliver precise, repeatable linear movement to improve process coverage and positioning accuracy.

Technical specifications (table)

• Size: Large
• Capacity: 3000–5000
• One module length: 3000 mm
• Welding machine options: WM
• Welding wire drum options: WWD
• Drive group code: OPTIONS
• Linear axis stroke: D-(Tech Pack Length)
• Maximum velocity: 0.6 m/s
• Repeatability: ±0.025 mm
• Tech Pack length: 1100
• Torque: 1500

Recommended servo motors

• ABB
• COMAU
• FANUC
• HYUNDAI
• KAWASAKI
• KUKA
• METALG
• NACHI
• OTC
• PANASONIC
• STAUBLI
• YASKAWA

Additional technical notes
Length of a module: 3000 mm

Characteristics / technical specifications

• Size: Large
• Capacity: 3000–5000
• One Module Length: 3000 mm
• Welding Machine Options: WM
• Welding Wire Drum Options: WWD
• Drive Group Code: OPTIONS
• Linear Axis Stroke: D-(Tech Pack Length)
• Maximum Velocity: 0.6 m/s
• Repeatability: ±0.025 mm
• Tech Pack Length: 1100
• Torque: 1500
• Use: adds 7th axis to 6-axis robots to increase accessibility and precision
