Linear axis with servo-motor HLMS

high-performanceprecisionhigh-speed

Product overview

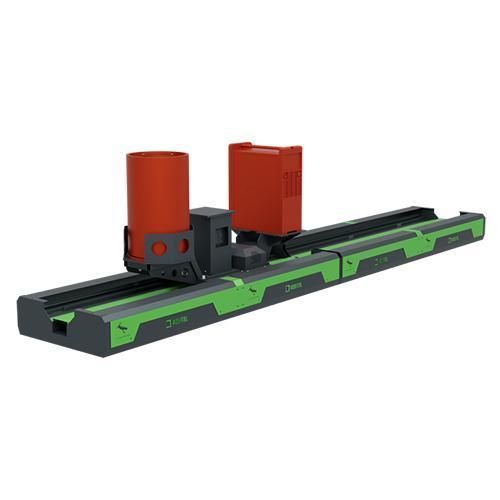

HLMS Series high-precision synchronous robotic sliders designed to act as a 7th axis for industrial robots. They increase robot accessibility and reach while maintaining high accuracy, speed and repeatability. The series is available in multiple sizes (Small, Medium, Large, Xlarge) to suit different payloads and application requirements.

Key properties

• High-precision mechanical design
• High-speed motion capability
• Consistent repeatability and controlled motion

Primary function
High-precision synchronous robotic sliders are used to add a 7th axis to robots, improving accessibility and enabling complex welding or handling operations with consistent repeatability and controlled motion.

Compatibility & customization

• Compatible with leading industrial robot brands and controllers.
• Customizable: modular lengths, color options, branding and integration of accessories to meet specific automation requirements.

Recommended servo motors

• ABB
• COMAU
• FANUC
• HYUNDAI
• KAWASAKI
• KUKA
• METALG
• NACHI
• OTC
• PANASONIC
• STAUBLI
• YASKAWA

Technical specifications

• Small — Capacity: 500 kg; One module length: 3000 mm; Max velocity: 0.9 m/s; Repeatability: ±0.005 mm; Tech Pack Length: 600 mm; Torque: 250 Nm
• Medium — Capacity: 1000 kg; One module length: 3000 mm; Max velocity: 0.6 m/s; Repeatability: ±0.005 mm; Tech Pack Length: 850 mm; Torque: 500 Nm
• Large — Capacity: 3000 kg; One module length: 3000 mm; Max velocity: 0.6 m/s; Repeatability: ±0.005 mm; Tech Pack Length: 1100 mm; Torque: 1500 Nm
• Xlarge — Capacity: 7000 kg; One module length: 3000 mm; Max velocity: 0.3 m/s; Repeatability: ±0.005 mm; Tech Pack Length: 1500 mm; Torque: 3000 Nm
• Welding machine options: WM
• Welding wire drum options: WWD
• Drive group code: OPTIONS (various drive configurations available)
• Linear axis stroke: D-(Tech Pack Length) (stroke depends on supplied tech pack length)

Additional information
Available options and accessories include various drive and welding machine integrations and welding wire drum arrangements. Products are offered in module lengths with tech pack options to match application stroke requirements.

Caractéristiques / spécifications techniques

• Series: HLMS series
• Sizes available: Small, Medium, Large, Xlarge
• Recommended servo motor brands: ABB, COMAU, FANUC, HYUNDAI, KAWASAKI, KUKA, METALG, NACHI, OTC, PANASONIC, STAUBLI, YASKAWA
