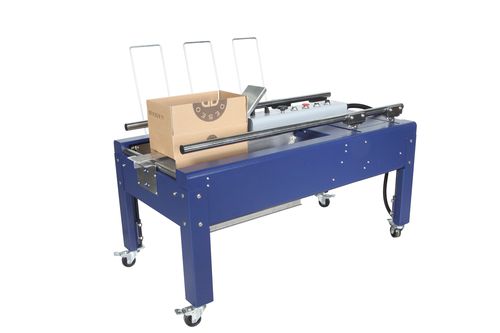

Semi-automatic carton erecting machine.
TECHNICAL FEATURES
MACCHINA STARBOX , 50 STARBOX 65
power supply - -
compressed air consumption (NI/min): 8,5 ; 9
operating pressure : 6±1
machine weight (kg) : 115 ; 120
manual cycle start by pedal or push-button: STD
lunghezza x larghezza x altezza (LxW) min. (mm/inches) vedi nastratrice a valle
lunghezza x larghezza x altezza (LxW) max. (mm/inches) : 650x500 / 25,5x19,7 ; 800x650 / 31,5x25,5
H max (mm/inches) 1225 / 48,2 ; 1225 / 48,2
W max (mm/inches) 740 / 29,1 ; 890 / 35
L max (mm/inches) 1740 / 68,5 ; 1890 / 74,4
working height (mm/inches) 670-850 / 26,4-33,5 ; 670-850 / 26,4-33,5
