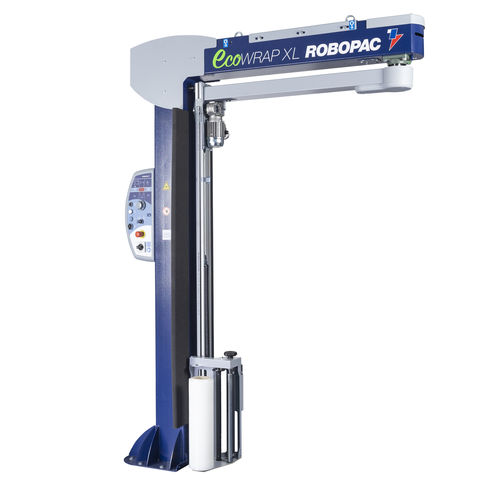

Rotary arm stretch wrapper ECOWRAP PLUS XL

semi-automaticfor heavy loadsstretch film

RCONNECT Innovation and connection at the service of the customer. CONTROL PANEL Panel LED display and a parameters selector by JOG. FRD CARRIAGE The FRD film carriage with Mechanical Brake is manually adjusted and has an indicator to show the tension setting. There is also a tension on/off lever to allow film to be released for attaching to the pallet without altering the film tension. This system allows tension to be constant and not effected by the size of the film reel. RCONNECT Innovation and connection at the service of the customer. CONTROL PANEL Panel LED display and a parameters selector by JOG. FRD CARRIAGE The FRD film carriage with Mechanical Brake is manually adjusted and has an indicator to show the tension setting. There is also a tension on/off lever to allow film to be released for attaching to the pallet without altering the film tension. This system allows tension to be constant and not effected by the size of the film reel. DATA SHEET TECHNICAL FEATURES Arm rotation speed : rpm : 7÷11 Carriage up-down speed : m/min : 2,6÷6 Maximum product dimensions (LxW) : mm : 1200x1200 Maximum product height : mm : 2000 Film carriage type : FRD Film stretch : manual Film pre-stretch : n.a. ELECTRICAL FEATURES Power supply voltage : V : 230 V 1 Ph Power supply frequency : Hz : 50/60 REEL FEATURES Max reel dimensions : mm : 500x275 Max reel weight : kg : 8 Film thickness : μm : 7÷35
