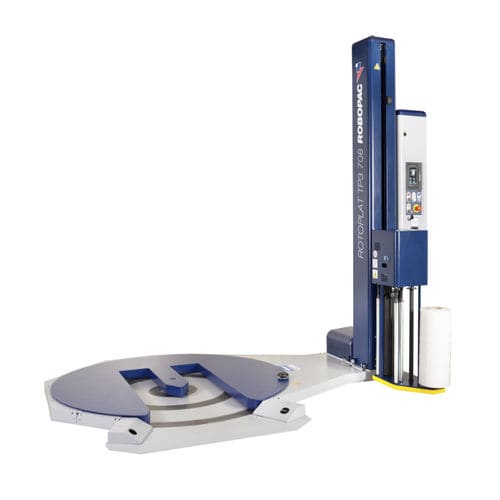

Rotoplat TP3 is a turntable wrapping machine for wrapping products with stretch film in vertical. Thanks to the TP3 turntable, designed for loading with hand pallet trucks, it is possible to change the load side by choosing 3 different configurations according to the customer's needs.
RCONNECT
Innovation and connection at the service of the customer.
COLOUR TOUCH SCREEN
The control panel is the brain of Rotoplat, here lies the heart of the machine and technology Robopac ie Multilevel-Control.
DATA SHEET
TECHNICAL FEATURES
Turntable diameter : mm :
1650 std. 1800 opt.
Max load weight : kg :
1500
Turntable speed : rpm :
5÷12
Carriage up-down speed : m/min :
1,5÷5,5
Maximum product dimensions (LxW) : mm :
1000x1200 std. 1200x1200 opt.
Maximum product height : mm :
2200 std. 2400/2800/3100 opt.
Film carriage type :
FR, PDS, PVS
Film stretch :
adjustable from panel
Film pre-stretch :
n.a. (FR), fixed 250% std (PDS), variable 150-400% (PVS)
Forklifting :
rear
ELECTRICAL FEATURES
Power supply voltage : V :
230 V 1Ph
Power supply frequency : Hz :
50/60
Installed power : kW :
1,5 (FR) / 1,9 (PDS) / 2,4 (PVS)
REEL FEATURES
Max reel dimensions : mm :
500x300
Max reel weight : kg :
20
Film thickness : μm :
17÷35
