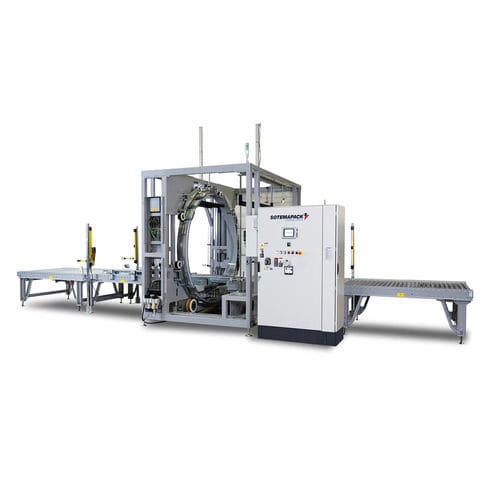

Horizontal stretch wrapping machine Spiror BW series
fully-automaticwindowfor cabinets

Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets - image - 2
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets - image - 3
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets - image - 4
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets - image - 5
Horizontal stretch wrapping machine - Spiror BW series - ROBOPAC SPA - fully-automatic / window / for cabinets - image - 6
Add to favorites
Compare this product

Characteristics

Type
horizontal
Operating mode
fully-automatic
Product applications
for doors, window, for roof, for cabinets, metal panels
Height

2,190 mm, 2,285 mm, 2,900 mm, 3,185 mm, 3,920 mm
(86 in, 90 in, 114 in, 125 in, 154 in)

Width

1,960 mm, 2,986 mm, 3,210 mm, 3,504 mm, 4,370 mm
(77 in, 118 in, 126 in, 138 in, 172 in)

Length

1,920 mm, 2,160 mm
(76 in, 85 in)

Rotational speed

35 rpm, 45 rpm, 55 rpm, 80 rpm
(220 rad.min-1, 283 rad.min-1, 346 rad.min-1, 503 rad.min-1)

Voltage

400 V

Power

6.5 kW, 7 kW, 7.5 kW, 12 kW
(8.84 hp, 9.52 hp, 10.2 hp, 16.32 hp)

Description

Full-automatic orbital stretch wrapping machine to wrap smaller sized loads on 4 sides Spiror BW 1400 full-automatic orbital stretch wrapping machine with 1400 mm diameter ring to wrap smaller sized loads on 4 sides Spiror BW 1800 Ideal ring size to wrap sliding doors, windows, sectional garage doors, insulated panels or similar products. Spiror BW 2200 Ideal ring size to wrap insulated metal panels, plaster boards and other building materials. Spiror BW 2600 Ideal ring size to wrap ondulated roof sheets, garden fencing, wooden panels and similar larger products. Spiror BW 3500 The ''GIANT'' in the horizontal wrappers to wrap oversized loads mainly in insulation market. Spiror BR - X Patented Custom Design rectangular wrapper, tailor made (to wrap customer products). Ideal for exceptional large products running at lower production speeds.
