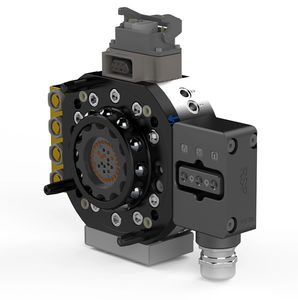

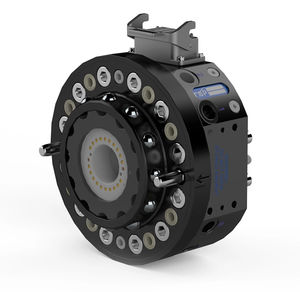

Robotic tool changer TC250-8

pneumatic

For robot payload 250 kg Compact design Minimum of wear of the contact surfaces Optimized for material handling and tough environments The RSP tool changers are designed to maximize the flexibility and reliability of your robot fleet. They offer the possibility to enhance your robot application by allowing it to switch between different tools, such as grippers, weld units, fixtures etc. Tool changers from RSP are robust and can manage continuous changing operations with maintained reliability and safety. Depending on model and options, electrical signals, weld and servo power, data, water, and compressed air can be transferred from the robot side to the tool. All our tool changers feature the patented locking device, TrueConnect™. It reduces play to the minimum and enables absolute alignment repeatability throughout its lifespan. With its unique design, it does not require exact alignment before docking with different tools. Find out more about the TrueConnect™ technology. Mechanical interface - ISO 9409-1-125-6-M10 Robot payload - 250 kg | 550 lb Fz - ± 2000 N | ± 450 lb Mz - ± 1250 Nm | ± 11000 lbf·in Mx/My - ± 2000 Nm | ± 17600 lbf·in Weight - 6 kg | 13.23 lb Height - 75 mm | 2.95 in Air channels total - 10 Air channels dedicated - 2 (TC open and TC close) Air channels available to tool - 8 Max air pressure - 10 bar | 145 psi Air flow per channel - 1600 l/min | 56.5 CFM Air connection, inlet - G 1/4" (8x), G 1/8" (2x) Air quality - Oil-clean and waterless filtered air, with max 25µm particle content Working temperature - +10°C – +50°C | 50 °F – 120 °F
